Den Hartog Industries

Den Hartog Industries offers services from conception and design through production, customer service, quality assurance, and delivery for the agricultural, industrial, OEM, and marine industries.

Known for its spirit of innovation, focus on the customer, and product quality that exceeds industry standards and expectations, Den Hartog Industries can provide products for all your plastic and metal manufacturing needs.



Please Note: OVA has special specs and stocking items may have a different lid, fitting, or location of either item than normally listed.

Please refer to our catalog here or contact your local OVA for details.

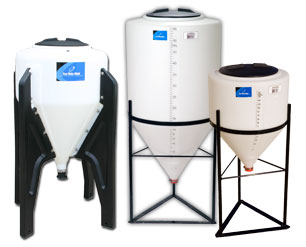

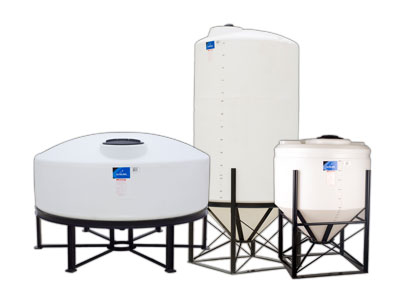

Cone Bottom

Cone Bottom Tanks are selected when a more complete drain out of stored chemical is required in indoor or outdoor installations. Tanks require stands to support the conical bottoms. Tanks are manufactured from medium- or high-density polyethylene with U.V. inhibitors. Tank walls are translucent for level viewing and equipped with gallon indicators.

View technical drawings by clicking on the part number below.

Part No. Capacity Weight Dimensions Overall Height Lid Fitting Specific Gravity
CB0300-42 300 Gallon – 45 deg 102 42 x 67 79″ 16″ 2″ 2.0
CB0800-86 800 Gallon – 15 deg 182 86 x 48 58″ 16″ 2″ 1.7
CB1000-64 1000 Gallon – 45 deg 252 64 x 98 112″ 16″ 2″ 1.7
CB1000-90 1000 Gallon – 15 deg 212 91 x 54 64″ 16″ 2″ 1.7
CB1005-64 1005 Gallon – 15 deg 222 64 x 86 105″ 16″ 2″ 1.7
CB1200-90 1200 Gallon – 15 deg 242 91 x 65 76″ 16″ 2″ 1.7
CB1300-90 1300 Gallon – 15 deg 262 91 x 65 75″ 16″ 2″ 1.7
CB1490-64 1490 Gallon – 45 deg 342 64 x 132 146″ 16″ 2″ 1.7
CB1500-64 1500 Gallon – 15 deg 332 64 x 122 141″ 16″ 2″ 1.7
CB1500-96 1500 Gallon – 30 deg 252 96 x 80 92″ 16″ 2″ 1.7
CB1600-90 1600 Gallon – 30 deg 286 91 x 85 94″ 16″ 2″ 1.7
CB1700-86 1700 Gallon – 15 deg 286 86 x 85 96″ 16″ 2″ 1.7
CB1750-90 1750 Gallon – 15 deg 308 91 x 83 94″ 16″ 2″ 1.7
CB2000-96 2000 Gallon – 30 deg 292 96 x 96 108″ 16″ 2″ 1.7
CB2495-90 2495 Gallon – 30 deg 487 91 x 119 129″ 16″ 2″ 1.7
CB2500-90 2500 Gallon – 15 deg 532 91 x 111 122″ 16″ 2″ 1.7
CB2600-86 2600 Gallon – 45 deg 502 86 x 146 158″ 16″ 2″ 1.7
CB2600-90 2600 Gallon – 30 deg 502 91 x 123 132″ 16″ 2″ 1.7
CB3000-90 3000 Gallon – 15 deg 552 91 x 128 138″ 16″ 2″ 1.7
CB3000-96 3000 Gallon – 30 deg 552 96 x 125 137″ 16″ 2″ 1.7
CB4200-122 4200 Gallon – 15 deg 1102 122 x 113 126″ 16″ 3″ 1.7
CB4600-102 4600 Gallon – 15 deg 1202 102 x 155 166″ 16″ 2″ 1.7
CB4900-102 4900 Gallon – 15 deg 1302 102 x 159 170″ 16″ 2″ 1.7
CB6000-122 6000 Gallon – 15 deg 1602 122 x 150 162″ 16″ 3″ 1.7
CB6900-122 6900 Gallon – 15 deg 1702 122 x 168 178″ 16″ 3″ 1.7
CB7500-142 7500 Gallon – 15 deg 1677 142 x 143 163″ 16″ 3″ 1.7
CB8250-122 8250 Gallon – 15 deg 2102 122 x 195 206″ 16″ 3″ 1.7
CB10500-142 10500 Gallon – 15 deg 2502 142 x 187 209″ 16″ 3″ 1.7
CB12500-142 12500 Gallon – 15 deg 3402 142 x 216 239″ 16″ 3″ 1.7



Cone Bottom Tanks are selected when a more complete drain out of stored chemical is required in indoor or outdoor installations. Flat Top Cone Bottom Tanks feature additional flats for fitting installation or mount.  Tanks require stands to support the conical bottoms. Tanks are manufactured from medium- or high-density polyethylene with U.V. inhibitors. Tank walls are translucent for level viewing and equipped with gallon indicators.

View technical drawings by clicking on the part number below.

Part No. Capacity Weight Dimensions Overall Height Lid Fitting Specific Gravity
CB0055-23† 55 Gallon – 15 deg 26 23 x 39 52″ 8″ 1 1/2″ 2.0
CB0100-23 100 Gallon – 15 deg 36 23 x 65 78″ 8″ 1 1/2″ 2.0
CB0145-36 145 Gallon – 15 deg 52 36 x 43 56″ 8″ 2″ 2.0
CB0150-36 150 Gallon – 45 deg 63 36 x 51 63″ 12″ 2″ 2.0
CB0200-36 200 Gallon – 15 deg 58 36 x 55 68″ 8″ 2″ 2.0
CB0200-42 200 Gallon – 45 deg 77 42 x 55 67″ 12″ 2″ 2.0
CBFD240-42 240 Gal Full Drain – 45 deg 77 42 x 59 69″ 12″ 2″ 2.0
CB0250-36 250 Gallon – 15 deg 76 36 x 67 80″ 8″ 2″ 2.0
CB0295-52 295 Gallon – 45 deg 97 52 x 51 64″ 12″ 2″ 2.0
CB0325-36 325 Gallon – 15 deg 92 36 x 84 97″ 8″ 2″ 2.0
CB0345-52 345 Gallon – 45 deg 102 52 x 58 70″ 12″ 2″ 2.0
CB0350-42 350 Gallon – 45 deg 120 42 x 81 93″ 12″ 2″ 2.0
CB0500-52 500 Gallon – 45 deg 132 52 x 81 92″ 12″ 2″ 2.0
CB0750-52 750 Gallon – 45 deg 171 52 x 105 118″ 12″ 2″ 1.7
CB0850-90 850 Gallon – 15 deg 212 91 x 56 67″ 16″ 2″ 1.7
CB1150-90 1150 Gallon – 15 deg 242 91 x 67 78″ 16″ 2″ 1.7
CB1550-90 1550 Gallon – 30 deg 286 91 x 88 97″ 16″ 2″ 1.7
CB2450-90 2450 Gallon – 15 deg 437 91 x 114 125″ 16″ 2″ 1.7
CB2550-90 2550 Gallon – 30 deg 502 91 x 126 134″



View technical drawings by clicking on the part number below.

Part No. Capacity Weight Dimensions Clearance
CB023-15ST 55 or 100 gal – 15 deg 37 20 x 20 x 24 13″
CB036-15ST 145, 200, 250 or 325 gal – 15 deg 84 31 x 31 x 26 12″
CB036-45ST 150 gal-45 deg 63 29 x 29 x 36 12″
CB042-45ST 200, 300 or 350 gal-45 deg 82 41 x 34 11″
CBFD042-45ST 240 gal Full Drain-45 deg 82 42 x 34 10″
CB052-45ST 295, 345, 500 or 750 gal-45 deg 180 55 x 41 13″
CB064-15ST 1005 or 1500 gal – 15 deg 320 64 x 25 16″
CB064-45ST 1000 or 1490 gal-45 deg 320 64 x 61 14″
CB086-15ST 800 or 1700 gal-15 deg 360 86 x 23 11″

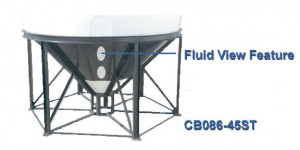

CB086-45ST 2600 gal-45 deg 580 86 x 49 12″
CB090-15ST 850, 1000, 1150, 1200, 1300, 1750, 2450, 2500, 2975 or 3000 gal-15 deg 380 90 x 24 11″
CB090-30ST 1550, 1600, 2495, 2550 or 2600 gal-30 deg 640 90 x 40 9″
CB096-30ST 1500, 2000, or 3000 gal – 30 deg 553 96 x 38 12″
CB102-15ST 4600 or 4900 gal-15 deg 640 102 x 25 11″
CB122-15ST 4200, 6000, 6900 or 8250 gal-15 deg 1020 122 x 27 10″
CB142-15ST 7500, 10500 or 12500 Gallon – 15 deg

Elliptical

Elliptical Tanks can be selected for stationary or transportable (non DOT regulated) applications both indoors and outdoors. The elliptical tank lowers the center of gravity to enhance stability and visibility. The tanks feature a standard 2-1/2” collection sump on the bottom for full drain out. An 8-1/2” deep sump option is available on five sizes. Sump is located directly under the lid on standard tanks, but a center sump option is available on tanks from 500-1250 gallons. These tanks require the bottom to be fully supported with a cradle for use. The tanks are manufactured from medium-density polyethylene with U.V. stabilizers and are designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.



    Elliptical Tanks are available with the following sump options:

    – 2.5″ sump (standard)
– 6″ deep boxed sump (HED1600-78 only)
– 8.5″ sloped deep sump
Deep sump part numbers begin with “HED”.

* indicates baffle option available
† indicates baffle system is standard
+ indicates available in a flat-bottom style

    View technical drawings by clicking on the tabs below.



Part No. Capacity Weight Dimensions Lid Fitting
HE0085-36 85 Gallons 42 36 x 47 x 21 7″ No Fitting
HE0200-41 200 Gallon 84 41 x 66 x 26 8″ 3/4″ & 1-1/4″
EO0300-48 300 Gallon Offset LId 114 48 x 71 x 36 16″ 3/4″ & 1 1/4″
HE0300-48 300 Gallon 114 48 x 71 x 30 8″ 3/4″ & 1-1/4″
HE0400-57 400 Gallon 129 57 x 70 x 36 8″ 3/4″ & 1-1/4″
EO0500-57 500 Gallon Offset Lid 165 58 x 83 x 42 16″ 3/4″ & 1 1/4″
HE0500-57 500 Gallon 167 57 x 82 x 36 8″ 3/4″ & 1-1/4″
HED0500-57 500 Gallon Deep (8.5″) Sump 167 57 x 82 x 36 8″ 3/4″ & 1-1/4″
HE0600-64 600 Gallon 187 64 x 84 x 46 16″ 3/4″ & 1-1/4″
HE0750-69+ 750 Gallon 222 69 x 89 x 42 16″ 1-1/4″ & 2″
HED0750-69 750 Gallon Deep (8.5″) Sump 222 69 x 89 x 42 16″ 1-1/4″ & 2″
HE0850-69 850 Gallon 248 69 x 89 x 46 16″ 1-1/4″ & 2″
HED0850-69 850 Gallon Deep (8.5″) Sump 248 69 x 89 x 46 16″ 1-1/4″ & 2″
HE1000-78* 1000 Gallon 287 78 x 90 x 49 16″ 1-1/4″ & 2″
HED1000-78* 1000 Gallon Deep (8.5″) Sump 287 78 x 90 x 49 16″ 1-1/4″ & 2″
HE1250-78† 1250 Gallon 402 78 x 92 x 60 16″ 1-1/4″ & 2″
HED1250-78† 1250 Gallon Deep (8.5″) Sump 402 78 x 92 x 60 16″ 1-1/4″ & 2″
HE1600-78† 1600 Gallon 439 78 x 138 x 49 16″ 2″
HED1600-78† 1600 Gallon 6″ Box Sump 439 78 x 138 x 49 16″ 2″

Bands are powder-coated black.

View technical drawings by clicking on the part number below.

Part No. Capacity Weight Bands
HE00085-C 85 Gallon 40 2″ x 55″
HE0200-C 200 Gallon 140 3″ x 61″
HE0300-C 300 Gallon 155 3″ x 74″
HE0400-C 400 Gallon 190 4″ x 87.5″
HE0500-C 500 Gallon 202 4″ x 87.5″
HE0600-C 600 Gallon 243 4″ x 92″
HE0750-C 750 Gallon 405 4″ x 92″
HE0850-C 850 Gallon 408 4″ x 99″
HE1000-C 1000 Gallon 515 4″ x 105″
HE1250-C 1250 Gallon 520 4″ x 126″
HE1600-C 1600 Gallon 578 3.5″ x 124″

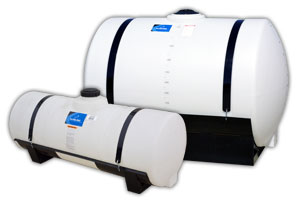

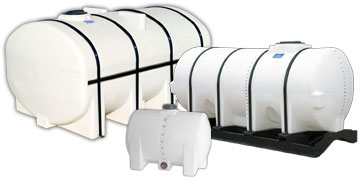

Free Standing Horizontal

Free Standing Leg Tanks are selected when transportable (non DOT regulated) containment is required for indoor or outdoor applications. Leg Tanks are equipped with molded-in legs to support the tank and band locators for tie down. Tanks are manufactured from medium- or high-density polyethylene with U.V. inhibitors and designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.



Ace Roto-Mold’s unique baffle system is easy to install and clean.  These baffles help to reduce fluid sloshing.
Baffles come standard in some tanks and offered as an option in others:Optional: FS1065-56W,FS1300-DW
Standard: FS1610-78, FS1750-62, FS1850-78, FS2350-88, FS2750-88, FS3250-88, FS3750-88 & FS4250-88


View technical drawings by clicking on the part number below.
FSxxxx-W = Without Sump
† indicates can be shipped via UPS/Fed Ex
When ordering, please indicate whether the fitting should be installed, not installed, or shipped loose. If installed, indicate preferred fitting location (END or SIDE are most common). Leg Tanks must be fully supported for transport.

Part No. Capacity Description Weight Dimensions Lid Fitting
FS0035-18† 35 Gallon   16 18 x 34 5″ 1″
FS0055-23 55 Gallon   22 23 x 34 x 27 5″ 1″
FS0065-24† 65 Gallon   33 24 x 39 5″ 1″
FS0070-24† 70 Gallon Stackable 37 24 x 39 5″ 1″
FS0125-32 125 Gallon   54 32 x 44 8″ 1″
FS0165-32 165 Gallon   72 32 x 54 8″ 1″
FS0225-38 225 Gallon   87 38 x 52 8″ 2″
FS0325-38 325 Gallon   108 38 x 72 12″ 2″
FS0335-44 335 Gallon   118 44 x 56 16″ 2″
FS0510-57 510 Gallon (Hoops Req.) Elliptical 164 57 x 80 x 39 16″ 2″
FS0535-48 535 Gallon   186 48 x 78 16″ 2″
FS0735-48 735 Gal (Hoops Req.)   252 48 x 103 16″ 2″
FS0925-DW 925 Gal (Hoops Req.)   292 62 x 81 16″ 2″
FS1005-48 1005 Gal (Hoops Req.)   342 48 x 130 16″ 2″
FS1035-78 1035 Gal (Hoops Req.) Elliptical 292 78 x 88 x 55 16″ 2″
FS1065-56W 1065 Gal (Hoops Req.)   342 56 x 105 16″ 2″
FS1300-DW 1300 Gal (Hoops Req.)   427 62 x 114 16″ 2″
FS1610-78 1610 Gal (Hoops Req.) Elliptical 530 78 x 139 x 56 16″ 2″
FS1750-62 1750 Gal (Hoops Req.)   616 62 x 147 16″ 2″
FS1800-2W 1800 Gal (Hoops Req.) multi tanks (2) 580 62 x 149 16″ 2″
FS1850-78 1850 Gal (Hoops Req.) Elliptical 571 78 x 139 x 63 16″ 2″
FS2350-88 2350 Gal (Hoops Req.) Elliptical 920 88 x 146 x 63 16″ 2″
FS2600-2W 2600 Gal (Hoops Req.) multi tanks (2) 850 62 x 212 16″ 2″
FS2750-88 2750 Gal (Hoops Req.) Elliptical 1150 88 x 146 x 70 16″ 2″
FS3250-88 3250 Gal (Hoops Req.) Elliptical 1208 88 x 146 x 79 16″ 3″
FS3750-88 3750 Gal (Hoops Req.) Elliptical 1422 88 x 146 x 91 16″ 3″
FS4200-92 4200 Gallon (Hoops Req.) Elliptical 1648 92 x 195 x 80 16″ 3″
FS4250-88 4250 Gal (Hoops Req.) Elliptical 1617 88 x 146 x 101 16″ 3″

Free Standing Leg Tanks are selected when transportable (non DOT regulated) containment is required for indoor or outdoor applications. Leg Tanks are equipped with molded-in legs to support the tank and band locators for tie down. Tanks are manufactured from medium- or high-density polyethylene with U.V. inhibitors and designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators. Skid required to support elevated legs.



Ace Roto-Mold’s unique baffle system is easy to install and clean.  These baffles help to reduce fluid sloshing. Baffles come standard in some tanks and offered as an option in others:

Optional: FM1065-56S,FM1300-DS
Standard: FM1310-62,FM1610-78S, FM1750-62S, FM1850-78, FM2350-88S, FM2750-88S, FM3250-88S, FM3750-88S & FM4250-88S



View technical drawings by clicking on the part number below.
FMxxxx-S = Sump
† indicates can be shipped via UPS/Fed Ex
When ordering, please indicate whether the fitting should be installed, not installed, or shipped loose. If installed, indicate preferred fitting location (END or SIDE are most common). Leg Tanks must be fully supported for transport.

Part No. Capacity Description Weight Dimensions Lid Fitting
FM0025-16S† 25 Gallon   15 16 x 34 5″
FM0925-DS 925 Gal (Hoops & Skid Req.)   292 62 x 81 16″ 2″
FM1010-48 1010 Gal (Hoops & Skid Req.)   342 48 x 130 16″ 2″
FM1065-56S 1065 Gal (Hoops & Skid Req.)   342 56 x 105 16″ 2″
FM1300-DS 1300 Gal (Hoops & Skid Req.)   427 62 x 114 16″ 2″
FM1310-62 1310 Gal (Hoops & Skid Req.)   500 62 x 114 x 74 16″ 2″
FM1610-78S 1610 Gal (Hoops & Skid Req.) Elliptical 530 78 x 139 x 58 16″ 2″
FM1750-62S 1750 Gal (Hoops & Skid Req.)   616 62 x 147 16″ 2″
FM1800-2S 1800 Gal (Hoops & Skid Req.) multi tanks (2) 580 62 x 149 16″ 2″
FM1850-78 1850 Gal (Hoops & Skid Req.) Elliptical 571 78 x 139 x 67 16″ 2″
FM2350-88S 2350 Gal (Hoops & Skid Req.) Elliptical 920 88 x 146 x 63 16″ 2″
FM2600-2S 2600 Gal (Hoops & Skid Req.) multi tanks (2) 850 62 x 212 16″ 2″
FM2750-88S 2750 Gal (Hoops & Skid Req.) Elliptical 1150 88 x 146 x 70 16″ 2″
FM3200-2S 3200 Gal (Hoops & Skid Req.) multi tanks (2)/ Elliptical 1100 88 x 172 x 74 16″ 2″
FM3250-88S 3250 Gal (Hoops & Skid Req.) Elliptical 1208 88 x 146 x 79 16″ 3″
FM3750-88S 3750 Gal (Hoops & Skid Req.) Elliptical 1422 88 x 146 x 91 16″ 3″
FM4200-92 4200 Gal (Hoops Req.) Elliptical 1648 92 x 195 x 80 16″ 3″
FM4250-88S 4250 Gal (Hoops & Skid Req.) Elliptical 1617 88 x 146 x 101 16″ 3″

View technical drawings by clicking on the part number below.

Part No. Capacity Weight Dimensions
FS048-HP 735 Gal Hoops Set of 3 1.315 OD
FS062-HP-925 925 Gal Hoops Set of 2 1.66 OD
FS062-HP-1300 1300 Gal Hoops Set of 3 1.66 OD
FS062-HP-1750 1750 Gal Hoops Set of 4 1.66 OD
FS062-HP-1800C 1800 Gal Hoops Set of 4 1.66 OD
FS062-HP-2600C 2600 Gal Hoops Set of 6 1.66 OD
FS0055-HP 55 Gal Hoops Set of 2 1.25 OD
FS0510-HP 510 Gal Hoops Set of 3 1.315 OD
FS1005-HP 1005 Gal Hoops Set of 4 1.315 OD
FM1010-HP 1010 Gal Hoops Set of 4 1.315 OD
FS1035-HP 1035 Gal Hoops Set of 3 1.66 OD
FS1065-HP 1065 Gal Hoops set of 3 1.315 OD
FS1065-BAF 1065 Gal Baffle Kit 38
FS1610-HP 1610 Gal Hoops w/o sump Set of 4 1.66 OD

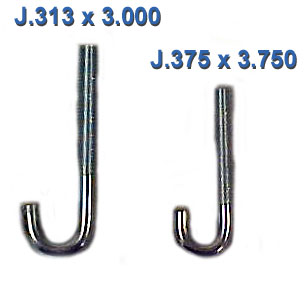

FS1610-HPJ 1610 Gal Hoops w/J Bolts Set of 4 1.66 OD
FM1610-HP 1610 Gal Hoops w/sump Set of 4 1.66 OD
FS1850-HP 1850 Gal Hoops w/o sump Set of 4 1.66 OD
FS1850-HPJ 1850 Gal Hoops w/J Bolts Set of 4 1.66 OD
FM1850-HP 1850 Gal Hoops w/sump Set of 4 1.66 OD
FS2350-HP 2350 Gal Hoops Set of 4 1.90 OD
FS2750-HP 2750 Gal Hoops Set of 4 1.90 OD
FM3200-HP 3200 Gal Hoops Set of 4 1.66 OD
FS3250-HP 3250 Gal Hoops Set of 4 1.90 OD
FS3250-LAD 3250 Ladder 56 16 x 78
FS3750-HP 3750 Gal Hoops Set of 4 1.90 OD
FS3750-LAD 3750 Ladder 62 16 x 90
FS4200-HPFS-92 4200 Gal Hoops with Feet 37
FS4250-HP 4250 Gal Hoops Set of 4 1.90 OD
FS4250-LAD 4250 Ladder 68 16 x 100
FS0925-SK 925 Gal Skid 280 61 x 64
FM1010-SK 1010 Gal Skid 409 53 x 115
FM1065-SKS 1065 Gal Skid w/sump 280 61 x 78
FS1065-SKW 1065 Gal Skid w/o sump 200 59 x 100
FS1300-SK 1300 Gal Skid 450 64 x 104
FM1310-SKC 1310 Gal Skid Center Drain 450 64 x 105
FM1310-SKE 1310 Skid End Sump 450 64 x 100
FM1610-SKC 1610 or 1850 Gal Skid Center Drain 490 83 x 107
FM1610-SKE 1610 or 1850 Gal Skid End Sump 490 83 x 112
FS1610/1850-SK 1610 OR 1850 Gal Skid 750 79 x 134.5
FS1750-SK 1750 Gal Skid 604 64 x 138
FS1800-SKW 1800 Gal Skid w/o sump 382 64 x 125
FM1800-SKS 1800 Gal Skid w/sump 580 64 x 125
FS2350/3250-SK 2350, 2750, 3250, 3750 or 4250 Gal Skid w/o sump 1078 88 x 141
FM2350/3250-SKC 2350, 2750, 3250, 3750 or 4250 Gal Skid Center Sump 1060 88 x 141
FM2350/3250-SKE 2350, 2750, 3250, 3750, or 4250 Gal Skid End Sump 1060 88 x 141
FS2600-SK 2600 Gal Skid 900 64 x 201
FM3200-SK 3200 Gal Skid 1163 90 x 168
FM4200-SKC 4200 Gal Skid Center Drain 1454 92 x 189
FM4200-SKE 4200 Skid End Drain 1454 92 x 189
FS4200-SKO 4200 Gal Skid

View technical drawings by clicking on the part number below.

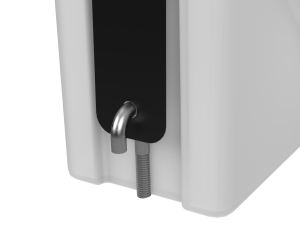

*FS0035-SB and FS0065-SB bands are stainless steel. Stainless is available on other sizes – call for quote

† indicates can be shipped via UPS/Fed Ex


Part No. Capacity Weight Dimensions
FS0035-SB†* 35 Gallon Kit Silver 18 ga. 2 x 45
FS0065-SB†* 65 Gallon Kit Silver 18 ga. 2 x 61
FS125/165-SBPJ† 125/165 Gallon Kit Black 14 ga. 3 x 80
FS225/325-SBPJ† 225/325 Gallon Kit Black 14 ga. 3 x 95
FS0335-SBPJ† 335 Gallon Kit Black 14 ga. 3 x 110
FS0535-SBPJ† 535 Gallon Kit Black

View technical drawings by clicking on the part number below.

† indicates can be shipped via UPS/Fed Ex


Part No. Weight Dimensions Kit

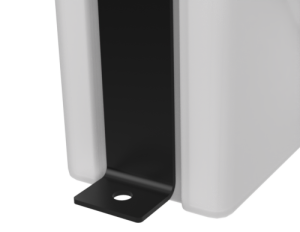

FS0035-SBPF† 8 2 x 47.5 35 Gallon Kit Black
FS0065-SBPF† 12 2 x 67 65 Gallon Kit Black
FS125/165-SBPF† 16 2.5 x 84.5 125/165 Gallon Kit Black
FS225/325-SBPF† 19 2.5 x 99.5 225/325 Gallon Kit Black
FS0335-SBPF† 34 2.75 x 116.5 335 Gallon Kit Black
FS0535-SBPF† 36 2.75 x 125 535 Gallon Kit Black

Horizontal



Round Horizontal Tanks are selected when transportable (non DOT regulated) containment is required for indoor or outdoor applications. Tanks require skids and bands to support the round bottom. All tanks are equipped with drain out sumps. Tanks are manufactured from medium-density polyethylene with U.V. inhibitors and designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.

View technical drawings by clicking on the part number below.
† indicates can be shipped via UPS/Fed Ex


Part No. Capacity Weight Dimensions Lid Fitting

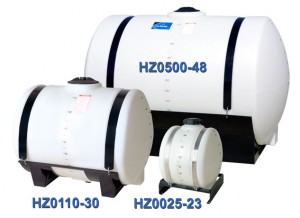

HZ0025-23† 25 Gallon 16 23 x 22 5″ 3/4″
HZ0055-23† 55 Gallon 25 23 x 38 5″ 3/4″
HZ0075-24† 75 Gallon 33 24 x 47 5″ 3/4″
HZ0095-24† 95 Gallon 37 24 x 56 5″ 1-1/4″
HZ0100-23 100 Gallon 40 23 x 64 5″ 1-1/4″
HZ0110-30 110 Gallon 42 30 x 44 8″ 1-1/4″
HZ0150-30 150 Gallon x 30 50 30 x 57 8″ 3/4″ & 1-1/4″
HZ0150-32 150 Gallon x 32 50 32 x 52 8″ 3/4″ & 1-1/4″
HZ0200-32 200 Gallon x 32 66 32 x 68 8″ 3/4″ & 1-1/4″
HZ0200-38 200 Gallon x 38 66 38 x 51 8″ 3/4″ & 1-1/4″
HZ0300-38 300 Gallon 90 38 x 76 8″ 3/4″ & 1-1/4″
HZ0400-42 400 Gallon 117 42 x 76 8″ 3/4″ & 1-1/4″
HZ0500-48 500 Gallon 124 48 x 79 8″ 3/4″ & 1-1/4″

View technical drawings by clicking on the part number below.
† indicates can be shipped via UPS/Fed Ex  * Stainless Steel Bands


Part No. Capacity Weight Bands
HZ0025-C*† 25 Gallon 18 1.5″ x 50″
HZ0055-C*† 55 Gallon 24 2″ x 50.5″
HZ0075-C† 75 Gallon 36 2″ x 51.5″
HZ0095-C† 95 Gallon 38 2″ x 51.5″
HZ0100-C† 100 Gallon 40 1.75″ x 41.50″
HZ0110-C† 110 Gallon 40 2.75″ x 60″
HZ0153-C† 150 Gallon x 30 57 2.75″ x 55″
HZ0150-C 150 Gallon x 32 56 2.75″ x 56″
HZ0232-C 200 Gallon x 32 110 2.75″ x 57″
HZ0238-C 200 Gallon x 38 85 2.75″ x 65″
HZ0300-C 300 Gallon 145 2.75″ x 69.5″
HZ0400-C 400 Gallon 146 2.75″ x 76″
HZ0500-C 500 Gallon 170 2.75″ x 88″

Inductor

Inductor Tanks are selected as supply tanks for application systems and when a more complete drain out of stored liquids is required in indoor or outdoor applications. Tanks require stands to support the conical bottoms. Tanks are manufactured from medium-density polyethylene with U.V. inhibitors and designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.

 Looking for a stand for an Inductor, click here to check out the large assortment of sizes DHI has available.

Clicking on the Part # below will bring up the Print (Technical Drawing) of the item.

† indicates can be shipped via UPS/Fed Ex


Part No. Description Weight Dimensions Lid Fitting
INFD7-15† 7 Gallon Full Drain 8 15 x 21 8″ 1 1/2″ FPT BOSS
INFD10-15† 10 Gallon Full Drain 10 15 x 25 8 1 1/2 FPT BOSS
IN0015-19† 15 Gallon 12 19 x 24 12″ 2″ FPT
INFD15-19† 15 Gallon Full Drain 12 19 x 27 12″ 1 1/2″ FPT BOSS
IN0015-19SM† 15 Gallon Side Mount 10 19 x 24 12″ 2″ FPT
IN0030-24† 30 Gallon 17 24 x 30 12″ 2″ FPT
INFD30-24† 30 Gallon Full Drain 17 24 x 33 12″ 1 1/2″ FPT BOSS
INFD40-30† 40 Gallon Full Drain 26 30 x 34 12″ 2″ MPT BOSS
IN0055-24† 55 Gallon 24 24 x 42 12″ 2″ FPT
INFD55-24† 55 Gallon Full Drain 24 24 x 46 12″ 1 1/2″ FPT BOSS
INFD60-30† 60 Gallon Full Drain 28 30 x 38 16″ 2″ MPT BOSS
IN0085-30† 85 Gallon 37 30 x 43 12″ 2″ FPT
INFD85-30 85 Gallon Full Drain 37 30 x 48 12″ 2″ FPT BOSS
IN0110-30 110 Gallon 44 30 x 51 12″ 2″ FPT
INFD110-30 110 Gallon Full Drain 44 30 x 56 12″ 2″ FPT BOSS

INFD40 85-ST

Clicking on the Part # below will bring up the Print (Technical Drawing) of the item.

† indicates can be shipped via UPS/Fed Ex


Part No. Description Weight
INFD7-10-ST† 7 gal. 12
IN15-ST† 15 gal. 15
INFD15-ST† 15 gal – 4″ taller for Full-Drain tank 16
IN30/55-ST† 30 or 55 gal. (for 24″ dia. tanks) 18
INFD30/55-ST† 30 or 55 gal – 4″ taller for Full-Drain tank 19
IN40/85-ST† 40, 60, 85 or 110 gal. (for 30″ dia. tanks) 40
INFD40-ST† 40 gal. (designed for UPS shipments) 40
INFD40/85-ST 40, 60, 85, 110 gal – 4″ taller for Full-Drain tank 45

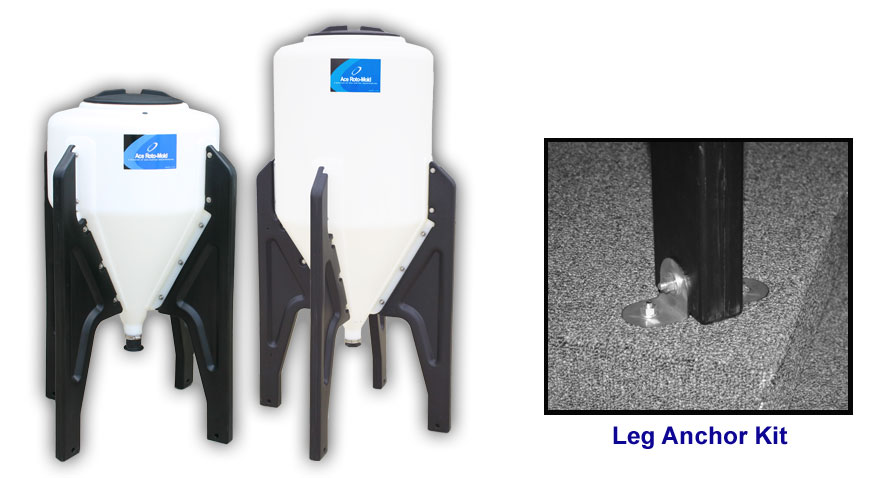

IBFD35-SET-&-IBFD60-SET-for-web

† Indicates can be shipped via UPS/Fed Ex

Part No. Capacity Weight Lid Fitting Case Dimensions
IBFD10-SET† 10 Gallon Full Drain 22 12″ 2″ 19″ x 22″ x 33″
IBFD15-SET† 15 Gallon Full Drain 24 12″ 2″ 19″ x 22″ x 33″
IBFD20-SET† 20 Gallon Full Drain 26 12″ 2″ 19″ x 22″ x 33″
IBFD35-SET† 35 Gallon Full Drain 48 12″ 2″ 25″ x 25″ x 43″
IBFD60-SET† 60 Gallon Full Drain 54 12″ 2″ 25″ x 25″ x 55″
12695 Blow Mold Inductor Leg Anchor Kit 2     6″ x 6″ x 6″

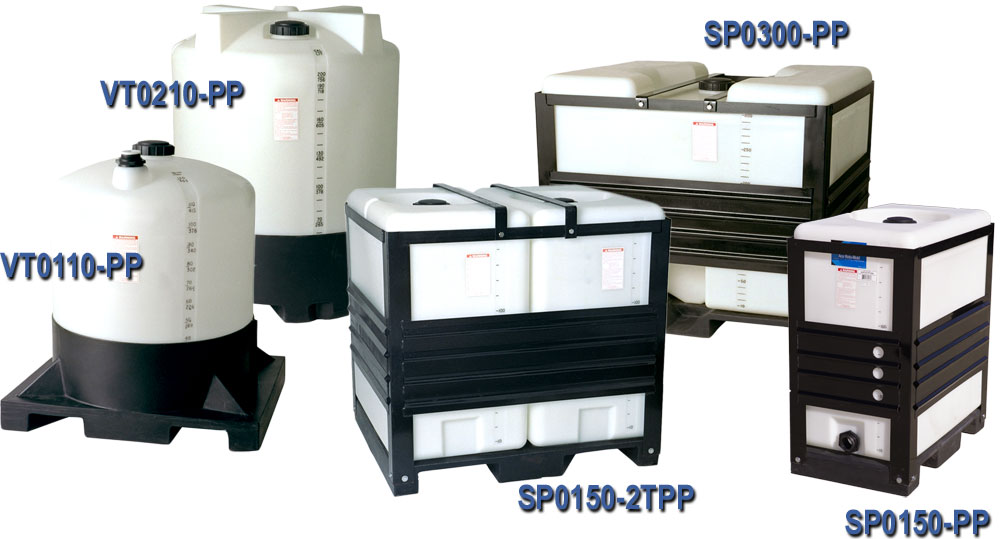

Pallet Paks

Pallet Pak units are designed for light-duty transport (non DOT regulated) for indoor or outdoor applications. The base of the pallet frame is designed for forklift transportability. The rectangular pallet paks have a metal frame and plastic base. The vertical paks have poly bases. The tanks are manufactured from medium-density polyethylene with U.V. inhibitors and designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.

View technical drawings by clicking on the part number below.


Part No. Capacity Weight Dimensions Lid Fitting
SP0150-PP 150 Gal Pallet & Tank 203 26 x 43 x 47 7″ 2″
SP0150-2TPP 150 Gal Pallet Pak-2 Tanks, Pallet, Frame 356 50 x 43 x 47 7″ 2″
SP0300-PP 300 Gal Pallet Pak – 1 Tank, Pallet, Frame 316 50 x 43 x 47 7″ 2″
VT0110-PP 110 Gal Pallet & Tank 70 33 x 40 x 44 5″ 2″ Top
VT0210-PP 210 Gal Pallet & Tank 84 41 x 52 5″ 2″ Top

Pick Up Tanks

Pick Up Tanks are selected as applicator tanks or when transportable (non DOT regulated) containment is required. Tanks are designed to fit most pickup trucks. Tanks are manufactured from medium-density polyethylene with U.V. inhibitors and designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.


The distinct shape of the new 205 & 305 gallon low-profile tanks allow for full use of
truck bed space and are designed for improved rear vision.

205 gallon tanks fit in the following trucks:
Nissan Frontier, GMC Canyon, Toyota Tacoma, Ford Ranger, Dodge Dakota, Chevrolet Colorado

305 gallon tanks fit in the following trucks:
Ford F-150, 250 & 350
Dodge Ram 1500, 2500 & 3500
Chevrolet Silverado 1500, 2500 & 3500
Toyota Tundra
GMC Sierra 1500, 2500 & 3500
Lincoln Mark LT

Syphon tube included with all Pick Up Tanks

View technical drawings by clicking on the part number below.
*305 Gal Pickup tank standard 1.5 specific gravity, 1.7 specific gravity available upon request


Part No. Capacity Weight Dimensions Lid Fitting
PU0200-52 200 Gallon 56 52 x 30 8″ 2″
PU0205-52 205 Gallon 87 52 x 52 x 26 7″ 2″
PU0305-60* 305 Gallon 107 60 x 58 x 30 7″ 2″
PU0350-62 350 Gallon 94 62 x 34 8″ 2″
PU0450-62 450 Gallon 104 62 x 41 8″ 2″
SSPU0100-70 100 Gallon Space Saver 86 70 x 17 x 42 12″
SSPU0200-70 200 Gallon Space Saver 120 70 x 29 x 42 12″
SSPU0300-70 300 Gallon Space Saver 174 70 x 41 x 42 12″
SSPU0400-70 400 Gallon Space Saver 202 70 x 52 x 43 12″

Specialty Bulk Storage & Applicator

Specialty Tanks are available for a variety of custom applications in both stationary and portable configurations. Tanks are manufactured from linear low density polyethylene with U.V. stabilizers and designed for containment of liquids of up to 1.7 specific gravity.   Tank walls are translucent for level viewing and equipped with gallon indicators. Blow Molded tanks (SPBM) are manufactured from HPDE.



Specialty Tanks are available for a variety of custom applications in both stationary and portable configurations. Tanks are manufactured from linear low density polyethylene with U.V. stabilizers and designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators. Blow Molded tanks (SPBM) are manufactured from HPDE.

View technical drawings by clicking on the part number below.
† indicates can be shipped via UPS/Fed Ex


Part No. Capacity Weight Dimensions Lid Fitting

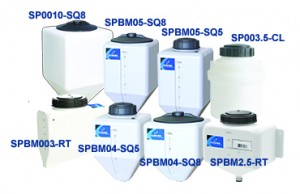

SPBM2.5-RT † 2.5 Gal Rectangle 4 7 x 15 x 14 5″ 3/4″
SPBM003-RT † 3 Gal Rectangle 4 7 x 12 x 14 5″ 3/4″
SP003.5-CL† 3.5 Gal Cylinder 5 11 x 15 5″ 3/4″
SPBM04-SQ5 † 4 Gal Square 5 11 x 11 x 15 5″ 1-1/4″
SPBM04-SQ7 † 4 Gal Square 5 11 x 11 x 15 7″ 1-1/4″
SPBM04-SQ8 † 4 Gal Square 5 11 x 11 x 14 8″ 1-1/4″
SPBM05-SQ5 † 5 Gal Square 5 11 x 11 x 20 5″ 1-1/4″
SPBM05-SQ7 † 5 Gal Square 5 11 x 11 x 20 7″ 1-1/4″
SPBM05-SQ8 † 5 Gal Square 5 11 x 11 x 18 8″ 1-1/4″
SP0010-SQ8† 10 Gal Square 10 13 x 13 x 21 8″ 1-1/4″
SP0015-SQ5 † 15 Gal Square 16 16 x 16 x 23 5″ 1-1/4″
SP0015-SQ7 † 15 Gal Square 16 16 x 16 x 24 7″ 1-1/4″
SP0015-SQ8 † 15 Gal Square 16 16 x 16 x 23 8″ 1-1/4″
SP0020-RT† 20 Gal Rectangle 18 12 x 26 x 25 5

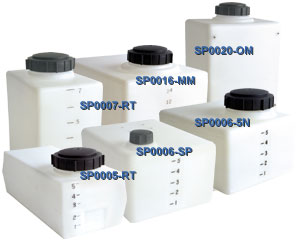

Flat Bottom

View technical drawings by clicking on the part number below.
† indicates can be shipped via UPS/Fed Ex

Part No. Capacity Weight Dimensions Lid Fitting
SP002.8-RT† 2.8 Gal 4 9 x 14 x 9 5″
SP0005-RT† 5 Gal 6 10 x 22 x 8 5″
SP0006-2P† 6 Gal w/ pump mount & 2″ lid 6 12 x 15 x 8 2″
SP0006-5N† 6 Gal w/ 5″ lid 6 12 x 15 x 8 5″
SPBM0007-RT† 7 Gal 8 9 x 14 x 15 5″
SPBM0016-MM† 16 Gal 11 15 x 21 x 15 5″
SP0020-OM† 20 Gal Upright 17 11 x 15 x 31 5″ 1/2″ outlet
SP0025-RT 25 Gal 18 16 x 34 x 16 5″ 1″

Total Drain

View technical drawings by clicking on the part number below.
* Sloped bottom for full drainage    † indicates can be shipped via UPS/Fed Ex

Part No. Capacity Weight Dimensions Lid Fitting

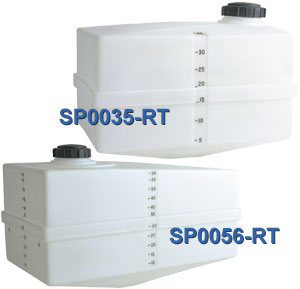

SP0035-RT† 35 Gal Rectangle 19 19 x 28 x 20 5″ 1″
SP0056-RT† 56 Gal Rectangle 32 20 x 38 x 26 5″ 3/4″

Specialty Tanks are available for a variety of custom applications in both stationary and portable configurations. Tanks are manufactured from medium-density polyethylene with U.V. inhibitors and designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.

Tanks listed below have sump on bottom that hang below tank.                                                                                  †Indicates can be shipped UPS/Fed Ex

Part No. Capacity Weight Dimensions Lid Fitting
SP0008-VM† 8 Gal Loaf 7 12 x 16 x 17 5″ 1/2″ FPT BOSS
SP0012-VM† 12 Gal Loaf 10 12 x 16 x 22 5″ 1/2″ FPT BOSS
SP0012-RT† 12 Gal Rectangle 10 14 x 18 x 12 5″ 3/4″
SP0019-VM† 19 Gal Loaf 15 12 x 16 x 28 5″ 1/2″ FPT BOSS
SP0020-LC† 20 Gal Rectangle 12 14 x 28 x 12 5″ 3/4″

View technical drawings by clicking on the part number below.
† indicates can be shipped via UPS/Fed Ex

*Metal Bands Available; Sold Separately

Part No. Capacity Weight Dimensions Lid Fitting
SP0026-RT† 26 Gal Rectangle 15 18 x 25 x 19 8″ 3/4″ outlet
SP0045-AS† 45 Gal Rectangle 23 18 x 37 x 22 5″
SP0050-RT†* 50 Gal Rectangle 27 19 x 38 x 23 8″ 1″
SP0055-MM† 55 Gal Rectangle 32 18 x 18 x 44 5″ 1″
SP0080-RT†* 80 Gal Rectangle (Support Req.) 42 18 x 27 x 44 5″ 1″
SP0100-RT†* 100 Gal Rectangle 50 27 x 43 x 29 8″ 1″
SP0130-UT 130 Gal Upright Rectangle 79 56 x 20 x 43 16″ 2″
SP0150-RT* 150 Gal Rectangle 62 36 x 48 x 29 8″ 1″
SP0200-RT* 200 Gal Rectangle 82 36 x 48 x 38 8″ 1″
SP0250-UT 250 Gal Upright Rectangle 115 29 x 56 x 48 16″ 1 1/2″
SP0300-UT 300 Gal Upright Rectangle 147 29 x 56 x 56 16″ 1 1/2″
SP0400-UT 400 Gal Upright Rectangle 210 29 x 60 x 74 16″ 2″
SP0500-UT 500 Gal Rectangle 223 31 x 74 x 70 16″ 2″
SP0750-UT 750 Gal Rectangle 318 35 x 82 x 86 16″ 2″
SP1000-UT 1000 Gal Rectangle 407 40 x 92 x 89 16″ 2″

View technical drawings by clicking on the part number below.
† indicates can be shipped via UPS/Fed Ex

Part No. Capacity Weight Dimensions Lid Fitting

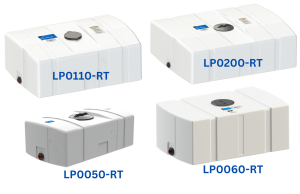

LP0050-RT† 50 Gal Low Profile Rectangle 37 24 x 43 x 15 5″ 1″
LP0060-RT† 60 Gal Low Profile Rectangle 42 26 x 42 x 17 6″ 1″
LP0110-RT† 110 Gal Low Profile Rectangle 60 35 x 48 x 19 8″ 1″
LP0200-RT 200 Gal Low Profile Rectangle 84 48 x 60 x 19 8″ 1″
LP0300-RT 300 Gal Low Profile Rectangle 135 48 x 80 x 21 8″ 2″

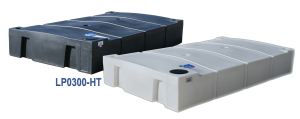

LP0300-HT 300 Gal Holding Tank 132 56 x 95 x 16 6″ 3″
LP0500-HT 500 Gal Holding Tank 250 92 x 94.5 x 17.15 6″

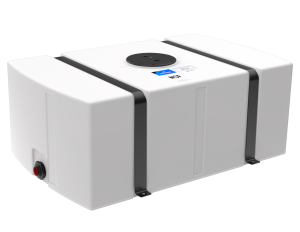

LP0060-RT with LP0060-SBP



View technical drawings by clicking on the part number below.


Part No. Capacity Weight Dimensions
SP0050-SBP 50 Gallon Rectangle Kit 7 2 x 54.5
LP0050-SBP 50 Gallon Low Profile Rectangle Kit 7 2 x 51.25
LP0060-SBP 60 Gallon Low Profile Rectangle Kit 7 2 x 58.25
SP0080-SBP 80 Gallon Rectangle Support Band 21 3 x 97
SP0100-SBP 100 Gallon Rectangle Kit 11 2.25 x 70.5
LP0110-SBP 110 Gallon Low Profile Rectangle Kit 11 2 x 69
SP0150-SBP 150 Gallon Rectangle Kit 14 2.25 x 77.5
SP0200-SBP 200 Gallon Rectangle Kit 16 2.25 x 94
LP0200-SBP 200 Gallon Low Profile Rectangle Kit 14 2 x 82.5
LP0300-SBP 300 Gallon Low Profile Rectangle Kit 16 2 x 86.5

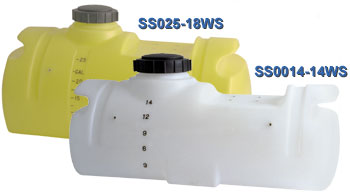

Spot Sprayer Tanks are designed as portable applicator supply tanks and are equipped with pump and equipment mount inserts. Tanks are equipped with molded-in legs to support the tank and band locators for tie down. Tanks mount with bottom inserts. All tanks are available with drain out sumps. Tanks are manufactured from linear low-density polyethylene with U.V. inhibitors and designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.

View technical drawings by clicking on the part number below.
† indicates can be shipped via UPS/Fed Ex

Part No. Capacity Description Weight Dimensions Lid
SM0014-14S† 14 Gallon Roto w/sump 8 14 x 30 x 14 5″
SS0014-14† 14 Gallon Roto w/out sump 8 14 x 30 x 14 5″
SM0025-18S† 25 Gallon Roto w/sump 14 18 x 34 x 18 5″
SS0025-18† 25 Gallon Roto w/out sump 14 18 x 34 x 18 5″
SB00015 15 Gallon Blow molded 7.5 34 x 16 x 13 5″
SB00025 25 Gallon Blow molded 12 36 x 18 x 17 5″
SB00030 30 Gallon Blow molded 13 19 x 36 x 18 5″
SB00040† 40 Gallon Blow molded 17.5 24 x 36 x 19 5″
SB00060† 60 Gallon Blow molded 21 24 x 36 x 26 5″
12499   5″ Lid w/Short Lanyard

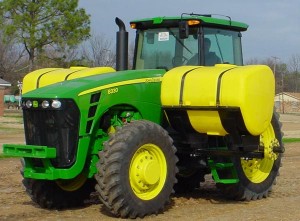

Tractor Mounted

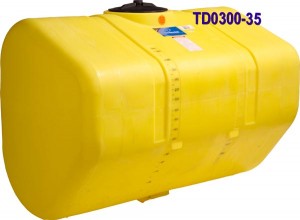

Tear Drop Tanks

View technical drawings by clicking on the part number below.


Part No. Capacity Weight Dimensions Lid Fitting
TD0250-36 250 Gal Tear Drop 97 36 x 52 x 45 12″ 3/4″ and 1-1/4″
TD0300-36 300 Gal Tear Drop 109 36 x 62 x 45 12 3/4″ and 1-1/4″



Tear Drop Cradles

View technical drawings by clicking on the part number below.


Part No. Capacity Weight Bands
TD0250-C 250 Gal 96 2.5″ x 74.5″
TD0300-C 300 Gal 108 2.5″ x 74.5″



Vertical Dome Top



Vertical – Dome Top tanks are free standing with a flat bottom for indoor or outdoor installations.  Ace Roto-Mold Vertical Tanks conform to the requirements of NSF/ANSI/CAN61.  Tanks are manufactured from medium- or high-density polyethylene with U.V. inhibitors. Tank walls are translucent for level viewing and equipped with gallon indicators.

† Indicates can be shipped via UPS/Fed Ex

* Heavy Fitting

Part No. Capacity Weight Dimensions Lid Fitting Specific Gravity
VT0010-12† 10 Gallon 9 12 x 25 8″ 3/4″ 2.0
VT0020-16† 20 Gallon 15 16 x 28 8″ 3/4″ 2.0
VT0025-18† 25 Gallon 14 18 x 30 5″ 3/4″ 2.0
VT0040-18† 40 Gallon 19 18 x 43 5″ 3/4″ 2.0
VT0055-20† 55 Gallon 23 20 x 47 5″ 1″ 2.0
VT0065-23† 65 Gallon 27 23 x 42 5″ 1″ 2.0
VT0110-32 110 Gallon 42 32 x 41 5″ 2″ Top 2.0
VT0135-23 135 Gallon 47 23 x 82 16″ 1″ 2.0
VT0300-42 300 Gallon 74 42 x 55 8″ 2″ 2.0
VT0405-52 405 Gallon 92 52 x 48 8″ 2″ 2.0
VT0425-42 425 Gallon 102 42 x 75 8″ 2″ 2.0
VT0505-46 505 Gallon 120 46 x 80 16″ 2″ 2.0
VT0550-52 550 Gallon 118 52 x 66 8″ 2″ 2.0
VT0600-46 600 Gallon 132 46 x 91 16″ 2″ 2.0
VT0625-64 625 Gallon 102 64 x 50 8″ 2″ 2.0
VT0800-46 800 Gallon 177 46 x 118 16″ 2″ 1.7
VT0900-46 900 Gallon 222 46 x 132 16″ 2″ 1.7
VT1000-64 1000 Gallon 252 64 x 81 16″ 2″ 1.7
VT1050-86 1050 Gallon 192 86 x 54 16″ 2″ 1.7
VT1200-64 1200 Gallon 277 64 x 97 16″ 2″ 1.7
VT1350-86 1350 Gallon 230 86 x 65 16″ 2″ 1.7
VT1500-64 1500 Gallon 337 64 x 115 16″ 2″ 1.7
VT1500-86 1500 Gallon 252 86 x 69 16″ 2″ 1.7
VT1525-64 1525 Gallon 352 64 x 122 16″ 2″ 1.7
VT1650-86 1650 Gallon 280 86 x 74 16″ 2″ 1.7
VT2000-64 2000 Gallon 467 64 x 156 16″ 2″ 1.7
VT2000-90 2000 Gallon 377 91 x 84 16″ 2″ 1.7
VT2050-86 2050 Gallon 402 86 x 93 16″ 2″ 1.7
VT2150-102 2150 Gallon 417 102 x 71 16″ 2″ 1.7
VT2500-90 2500 Gallon 422 91 x 103 16″ 2″ 1.7
VT2500-96 2500 Gallon 445 96 x 92 16″ 2″ 1.7
VT3000-90 3000 Gallon 552 91 x 120 16″ 2″ 1.7
VT3000-96 3000 Gallon 582 96 x 109 16″ 2″ 1.7
VT3100-102* 3100 Gallon 552 102 x 103 16″ 2″ 1.7
VT3400-102* 3400 Gallon 587 102 x 107 16″ 2″ 1.7
VT4000-96* 4000 Gallon 902 96 x 140 16″ 2″ 1.7
VT4200-96* 4200 Gallon 952 96 x 148 16″ 2″ 1.7
VT4700-120 4700 Gallon 954 120 x 112 16″ 3″ 1.7
VT4995-142 4995 Gallon 952 142 x 90 16″ 3″ 1.7
VT5000-102* 5000 Gallon 1302 102 x 156 16″ 3″ 1.7
VT5150-102* 5150 Gallon 1352 102 x 161 16″ 3″ 1.7
VT6250-102* 6250 Gallon 1552 102 x 194 16″ 3″ 1.7
VT6500-120* 6500 Gallon 1502 120 x 152 16″ 3″ 1.7
VT7000-142* 7,000 Gallons 1752 142 x 125 16″ 3″ 1.7
VT7800-120* 7800 Gallon 1902 120 x 176 16″ 3″ 1.7
VT8000-120* 8000 Gallon 1932 120 x 180 16″ 3″ 1.7
VT9000-142* 9000 Gallon 2002 142 x 154 16″ 3″ 1.7
VT9150-120* 9150 Gallon 2202 120 x 203 16″ 3″ 1.7
VT9500-120* 9500 Gallon 2352 120 x 213 16″ 3″ 1.7
VT10500-2500* 10,500 Gallon 2502 143 x 179 16″ 3″ 1.6
VT10500-2800* 10,500 Gallon 2802 143 x 179 16″ 3″ 1.8
VT12500-142* 12,500 Gallon 3402 142 x 205 16″ 3″ 1.7
VT15500-142 15,500 Gallon 4002 142 x 243 16″ 3″ 1.7

Accessories

These flexible nylon clips are handy when attaching wands, hoses or other round objects to a flat surface.  The mounting surface features an anti-rotation button, which engages with the dimple recess in the tank to prevent rotation.  Clips attach to surface with #10 screws.  Mounts shafts from 1/4″ to 7/16″ diameter.


Part No. Description
19444 3/8″ Accessory Clip
12732 1/2″ Accessory Clip
12094 10-24 x 3/8″ Phillips Panhead Screws w/ Locking Patch
12100 5/16″ Accessory Clip Kit
(includes 2 Accessory Clips & 2 screws packaged in zip & seal bag)
12200 1/2″ Accessory Clip Kit (includes 2 Accessory Clips & 2 screws packaged in zip & seal bag)
Part No. Description

J-Bolts are used to secure bands and hoops to metal framework. J-Bolts are included with the bands and hoops that require them, but we also offer bolt bags and individual J-Bolts as replacement parts. Please refer to the dimensions listed below to order the correct part number. If you need assistance determining which replacement part your tank requires, call our customer service department at 1-800-342-3408. All accessory parts can be shipped via UPS/FedEx.


Part No. Description
J.313 x 3.000 5/16″
J.375 x 3.750 3/8″
J.375 x 4.250 3/8″
J.375 x 5.000 3/8″
J.500 x 6.000 1/2″
J.625 x 7.000 5/8″
J.625 x 8.000 5/8″

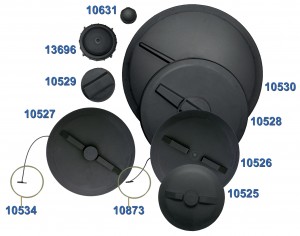

Lids for Ace Roto-Mold tanks are available in the following sizes. Standard lids that come included with each tank are listed in each tank table. The following lids are available as replacement parts. If you need assistance determining which replacement part your tank requires, call our customer service department at 1-800-342-3408. All accessory parts can be shipped via UPS/FedEx.

View technical drawings by clicking on the part number below.


Part No. Description
10631 2″ Spin on Kelch Cap
13108 3 1/2″ Vented Lid & Lanyard Assembly
19406 5″ Hinged Low-Profile
13748 5″ Threaded Non-Vented Lid
13696 5″ Threaded Lid w/ Vent
13697 5″ Threaded Lid w/ .25″ Vent Hole

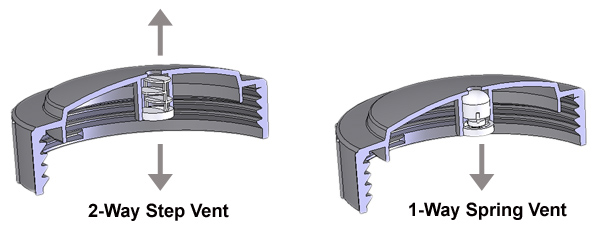

13709 5″ Threaded Lid w/ 2 Way Step Vent
13714 5″ Threaded Lid w/ 2 Way Step Vent & Gasket
13715 5″ Threaded Lid w/ .25″ Vent Hole & Lanyard Assembly
13716 5″ Threaded Lid w/ Vent & Gasket
13717 5″ Threaded Lid w/.25 Vent Hold & Gasket
10921 6″ Lid and Ring Assembly
14834 6″ Cap without Port
14835 6″ Cap – 2.5-5 Buttress Thread
14836 6″ Cap – 2″ NPS Thread
14882 6″ Cap Without Port with Viton Gasket
14883 6″ Cap 2″ NPS Port Viton Gasket
14884 6″ Cap 2.5-5″ Buttress Port Viton Gasket
14887 6″ Cap Without Port Santoprene Gasket
14888 6″ Cap 2″ NPS Port Santoprene Gasket
14889 6″ Cap 2.5-5″ Buttress Port Santoprene Gasket
12414 7″ Spin-on Spring-Vented Lid
12415 7″ Spin-on Non-Vented Lid
12427 7″ Spin-on Lid w/ Step Vent
10525 8″ Threaded Vented Lid & Ring
14733 9″ Cap without Port
14734 9″ Cap – 2.5-5 Buttress Thread
14735 9″ Cap – 2″ NPS Thread
14737 9″ Cap Assembly No Port Santoprene Gasket
14738 9″ Cap Assembly 2″ NPS Port Santoprene Gasket
14739 9″ Cap Assembly 2.5-5″ Buttress Port Santoprene Gasket
14874 9″ Cap Assembly 2.5-5″ Buttress Port Viton Gasket
14875 9″ Cap Assembly 2″ NPS Port Viton Gasket
14876 9″ Cap Assembly No Port Viton Gasket
12460 12″ Self-Anchoring Lanyard
10526 12″ Threaded Non-Vented Lid & Ring
10527 12″ Threaded Vented Lid & Ring
10528 16″ Threaded Vented Lid & Ring
15082 16″ Hinged Vented Lid
15083 16″ Hinged Non-Vented
10530 22″ Threaded Vented Lid & Ring
10520 Breather Only (for 8″ & 12″ Lids)
10529 Breather, 4″ Center (for 16″ Lids)
10873 Short Lanyard – 12″
10534 Long Lanyard – 16″
19024 Outlet Cap, 3/4″
19025 Tether for Outlet Cap
10960 Gasket for Outlet Cap
