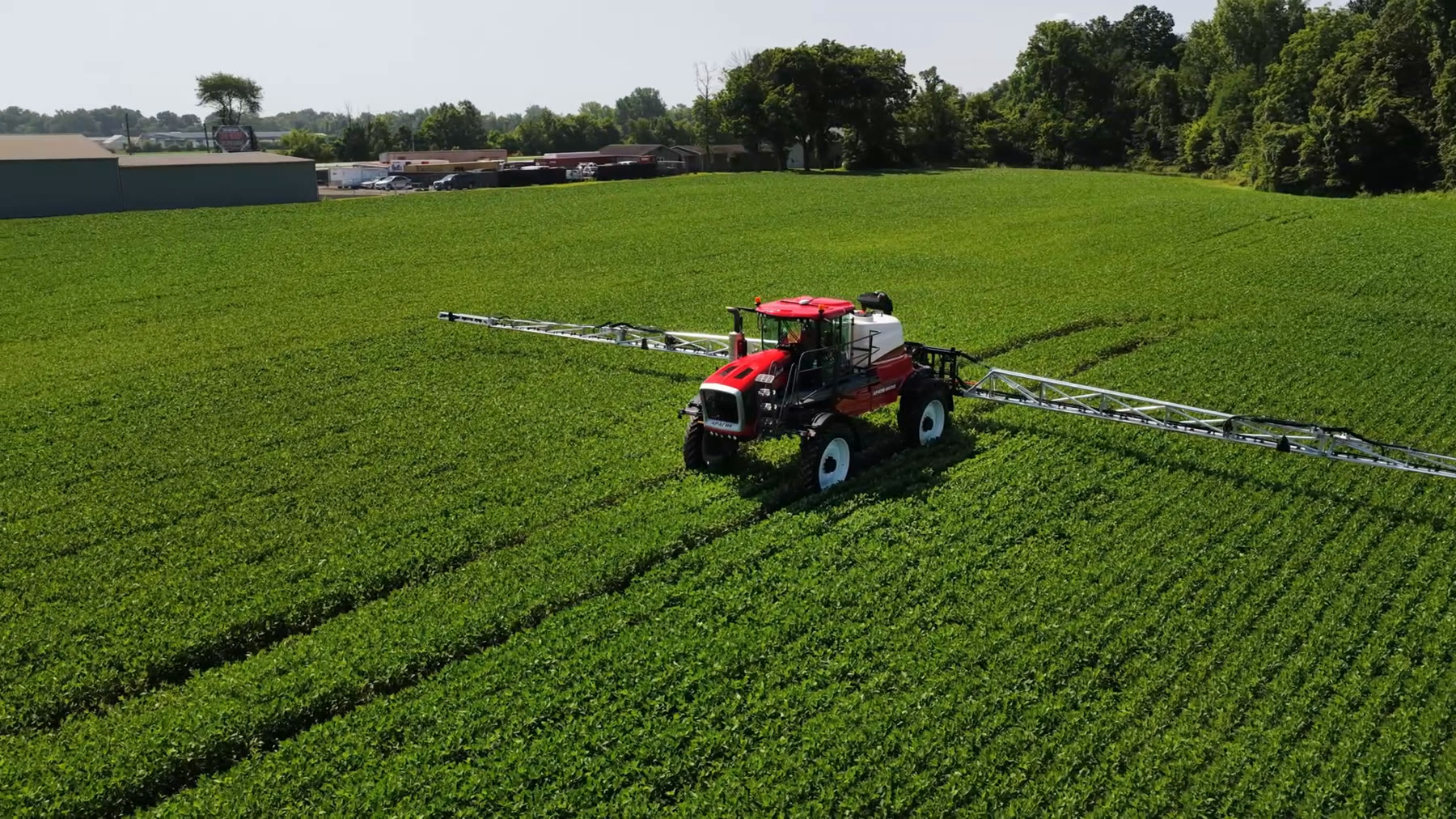

HS1150 High-clearance sprayer
Engine
Cummins QSB6.7
Power
300 hp
Tank
1,120 gal
Clearance
60–70″
Weight
28,225 lb
Conquer all-season application with one machine. The tallest rear boom in North America. A 60″–70″ crop clearance that adjusts hydraulically on-the-go, 4-wheel steer with crab walk, and a 1,120-gallon tank backed by 300 HP of Cummins QSB6.7.
Standard features
Boom System
01
Smarter Rack Designcushioned & stableImproved cushioning and stability absorb stress across rough terrain, smoother operation, reduced wear, lower long-term maintenance.Less wear · Smoother Operation
02
Breakaway Wingshandles field obstaclesWings flex on contact with trees, poles, fence lines, and equipment, then automatically return to position so you keep moving.Auto return · Keeps You Moving
03
Greaseless Bushingsdramatically less serviceEliminate 27 of 32 grease points across the rack and wings. Dramatically less daily service. More uptime. More acres.27/32 · Grease Points Cut
04
Boom Recirculationprimed & uniformPrimes the boom before spraying for a uniform pattern. Eliminates product settling, auto mode detection, low-flow alert.Primed · Before You Spray
Performance
01
Hydrostatic Drivesince 19974-wheel hydrostatic drive with variable speed and infinite control. Cummins QSB6.7 paired with 4-wheel steer and crab mode, built for the late-season ground other sprayers can't cross.4WD /4WS · Drive · Steer
02
Hydrocone Cabfluid-elastic isolatorsAMC Mecanocaucho "Hydrocone" isolators absorb shock and chassis displacement, delivering a measurably smoother ride over rough ground.50% · Smoother Ride
03
Load-Sense Steeringvariable-displacement pumpA variable-displacement load-sense piston pump delivers the right hydraulic flow at every speed, reducing steering effort at headlands, hills, and tight corners.20% · Less Steering Effort
Cab & Comfort
01
Heated & Cooled Seatleather · operator-first cabHeated and cooled leather seat comes standard. Because the cab is where the season is really won, and every hour of comfort is an hour of accuracy.12hr+ · Cab Comfort
02
Forward Visibilityfront-engine architectureFront-engine, rear-boom layout means an unobstructed forward view down the row, and the boom stays out of the operator's sightline, every pass.360° · Row Visibility
03
Ergonomic ControlsBosch · Raven · ACTIAClimate control, intuitive joystick, common display, and proven Raven and ACTIA boom controllers. Built around the operator, not the engineer.All day · Operator-First
Tank & Plumbing
01
HDPE Product Tank1,120 gallonsHigh-density polyethylene product tank. Chemically resistant, contoured for balance, and built for decades of daily rinse cycles. Stainless steel available.1,120 gal · Capacity
02
110-Gallon Rinse Tankfresh-water cleanDedicated 110-gallon rinse tank for end-of-day cleanout and chemistry switches. Keeps the product tank ready for the next mix.110 gal · Rinse Capacity
03
Full Cleanout Accessplumbing built for serviceBoom recirculation works with individual nozzle and section control. 100% cleanout access through the plumbing, nothing trapped, nothing settled.100% · Cleanout Access
Ownership
01
Bumper-to-Bumper2-year warrantyTwo-year full warranty. Five-year limited. The strongest coverage in mechanical-drive sprayers, in writing, from the factory.2/5 yr · Bumper / Limited
02
Same-Day Parts95% fill rate95% same-day parts fill from Mooresville. When something's needed, it's on its way, not on backorder. Built for the season you're in.95% · Same-Day Fill
03
Built in Mooresville, INUSA · since 1997Designed and assembled by Equipment Technologies in Mooresville, Indiana. American-made, backed by the people who built it.USA · Made & Backed
Specifications
Figures are from the factory spec sheet. Full HS1150 page at etsprayers.com ↗
Chassis, Suspension & Tires
- Weight
- 28,225 lbsApproximate dry weight
- Axle Width
- 120″–160″Hydraulic adjustable
- Transport W & H
- 144″ max
- Overall Length
- 372″ max
- Turning Radius
- 13′ / 24′Four-wheel steer / two-wheel steer
- Wheel Base
- 14′ 7″
- Front Tires
- Michelin 380/90R46Standard
- Rear Tires
- Michelin 380/90R46Standard
- Crop Clearance
- 60″–70″Hydraulic adjustable on-the-go
- Suspension
- Four-wheel independent airbags
- Brakes
- Hydraulic
Engine & Drivetrain
- Engine
- Cummins QSB6.7300 HP rated
- Rated Horsepower
- 300 HP
- Transmission
- Rexroth HydrostaticBosch hydrostatic controllers
- Driveline Efficiency
- 75%Hydrostatic, trade-off for clearance & 4WS
- PTG Ratio
- 8 HP / 1,000 lbsPower-to-ground
- Fuel Tank
- 100 gal
- DEF Tank
- 10 galDiesel exhaust fluid
Product & Spray System
- Tank Capacity
- 1,120 gallonsHDPE · High-density polyethylene
- Rinse Tank
- 110 gal
- Booms
- 100′ · 120′ · 132′Pommier aluminum
Steering, Cab & Coverage
- Steering
- 4-Wheel Steer + CrabSlope compensation, back-axle correction
- Cab
- Climate-Controlled LeatherBosch + Raven + ACTIA control systems
- Warranty
- 2-Year Bumper-to-Bumper5-year limited warranty
- Assembly
- Mooresville, INBuilt by Equipment Technologies since 1997
