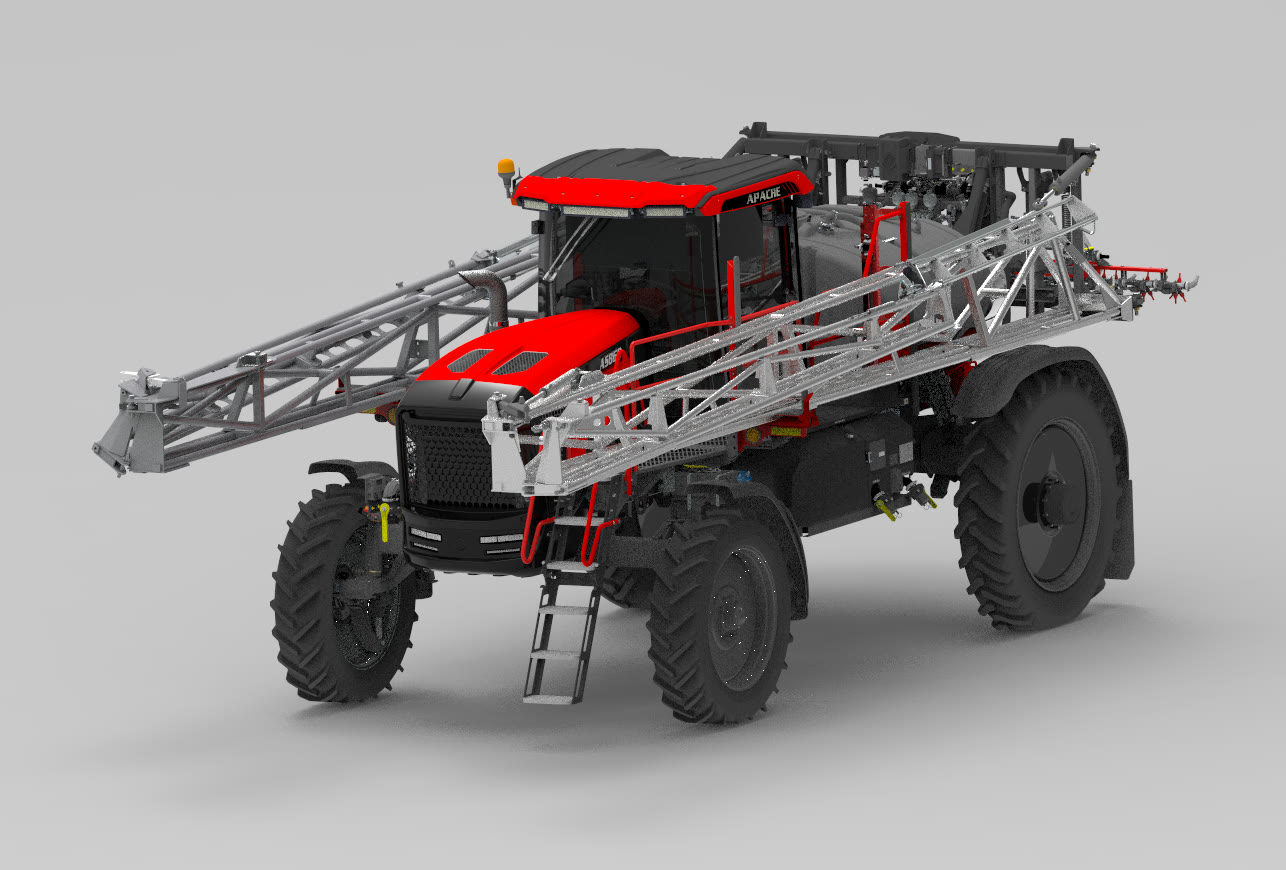

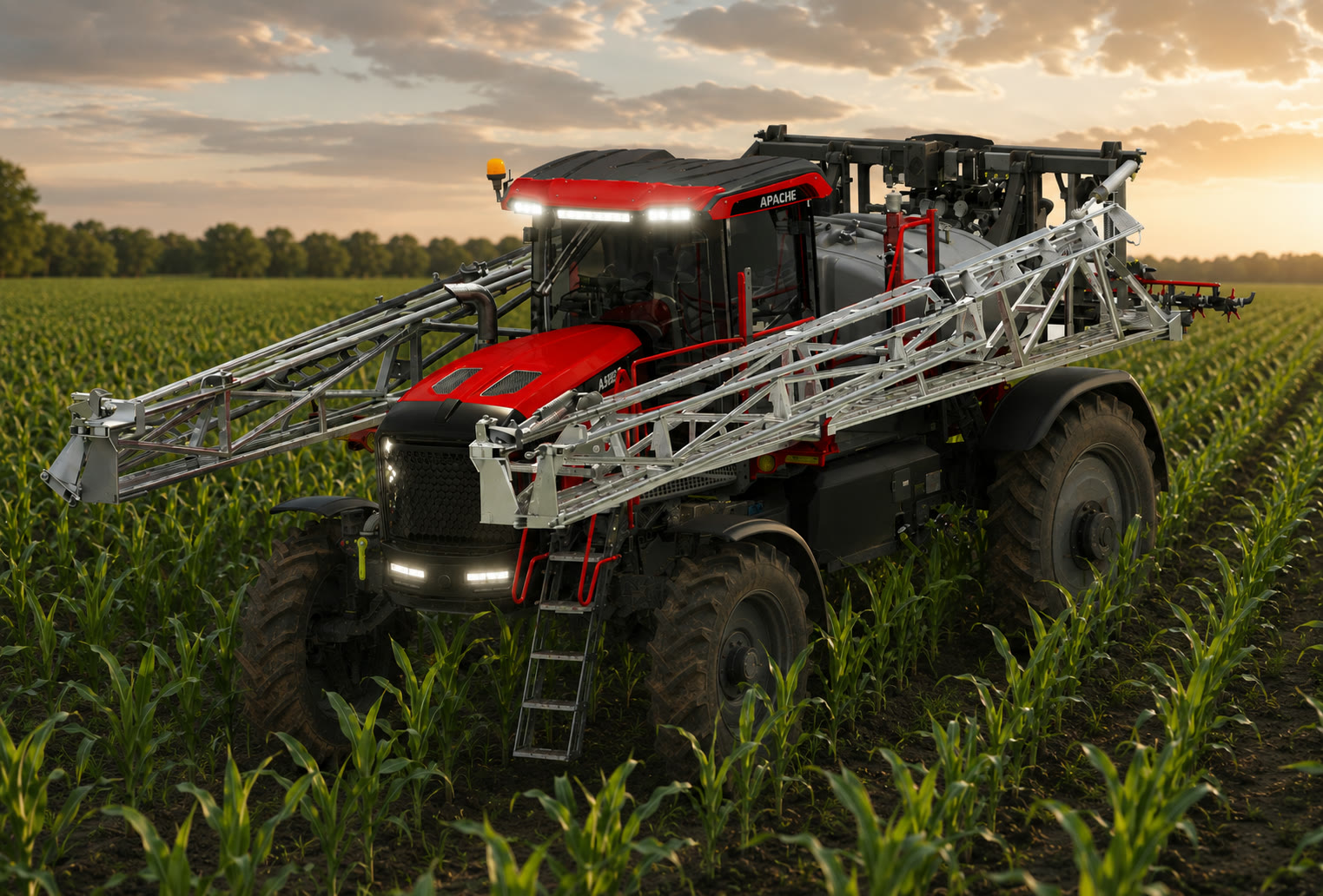

AS860 Mechanical-drive sprayer
Engine
Cummins B4.5
Power
200 hp
Tank
800 gal
Boom
90–132 ft
Weight
18,400 lb
An ideal balance between the compact and large-capacity Apaches. 800 gallons, a Cummins B4.5 Performance Series at 200 HP, and the productivity you need without giving up fuel efficiency, visibility, or maneuverability.
Standard features
Boom System
01
Smarter Rack Designcushioned & stableImproved cushioning and stability absorb stress across rough terrain, smoother operation, reduced wear, lower long-term maintenance.Less wear · Smoother Operation
02
Breakaway Wingshandles field obstaclesWings flex on contact with trees, poles, fence lines, and equipment, then automatically return to position so you keep moving.Auto return · Keeps You Moving
03
Greaseless Bushingsdramatically less serviceEliminate 27 of 32 grease points across the rack and wings. Dramatically less daily service. More uptime. More acres.27/32 · Grease Points Cut
04
Boom Recirculationprimed & uniformPrimes the boom before spraying for a uniform pattern. Eliminates product settling, auto mode detection, low-flow alert.Primed · Before You Spray
Performance
01
Mechanical Drivesince 1997No hydrostatic parasitic loss. Cummins B6.7 through a ZF Powershift transmission delivers 90% driveline efficiency, and best-in-class power-to-ground.90% · Driveline Efficiency
02
Hydrocone Cabfluid-elastic isolatorsAMC Mecanocaucho "Hydrocone" isolators absorb shock and chassis displacement, delivering a measurably smoother ride over rough ground.50% · Smoother Ride
03
Load-Sense Steeringvariable-displacement pumpA variable-displacement load-sense piston pump delivers the right hydraulic flow at every speed, reducing steering effort at headlands, hills, and tight corners.20% · Less Steering Effort
Cab & Comfort
01
Heated & Cooled Seatleather · operator-first cabHeated and cooled leather seat comes standard. Because the cab is where the season is really won, and every hour of comfort is an hour of accuracy.12hr+ · Cab Comfort
02
Forward Visibilityfront-engine architectureFront-engine, rear-boom layout means an unobstructed forward view down the row, and the boom stays out of the operator's sightline, every pass.360° · Row Visibility
03
Ergonomic ControlsBosch · Raven · ACTIAClimate control, intuitive joystick, common display, and proven Raven and ACTIA boom controllers. Built around the operator, not the engineer.All day · Operator-First
Tank & Plumbing
01
HDPE Product Tank800 gallonsHigh-density polyethylene product tank. Chemically resistant, contoured for balance, and built for decades of daily rinse cycles. Stainless steel available.800 gal · Capacity
02
80-Gallon Rinse Tankfresh-water cleanDedicated 80-gallon rinse tank for end-of-day cleanout and chemistry switches. Keeps the product tank ready for the next mix.80 gal · Rinse Capacity
03
Full Cleanout Accessplumbing built for serviceBoom recirculation works with individual nozzle and section control. 100% cleanout access through the plumbing, nothing trapped, nothing settled.100% · Cleanout Access
Ownership
01
Bumper-to-Bumper2-year warrantyTwo-year full warranty. Five-year limited. The strongest coverage in mechanical-drive sprayers, in writing, from the factory.2/5 yr · Bumper / Limited
02
Same-Day Parts95% fill rate95% same-day parts fill from Mooresville. When something's needed, it's on its way, not on backorder. Built for the season you're in.95% · Same-Day Fill
03
Built in Mooresville, INUSA · since 1997Designed and assembled by Equipment Technologies in Mooresville, Indiana. American-made, backed by the people who built it.USA · Made & Backed
Specifications
Figures are from the factory spec sheet. Full AS860 page at etsprayers.com ↗
Chassis, Suspension & Tires
- Weight
- 18,400 lbsApproximate dry weight
- Axle Width
- 120″ fixedOr 120″–160″ hydraulic adjustable (with 50″ crop clearance)
- Transport W & H
- 144″ max
- Overall Length
- 290″ max
- Turning Radius
- 20′
- Wheel Base
- 15′
- Front Tires
- Michelin 380/80R38Standard
- Rear Tires
- Michelin 380/90R46Standard
- Crop Clearance
- 42″ · 50″ optional
- Suspension
- Independent hydraulicPatented
- Brakes
- Internal wet discFully enclosed · self-adjusting
Engine & Drivetrain
- Engine
- Cummins B4.5Performance Series, 200 HP rated
- Rated Horsepower
- 200 HP
- Transmission
- JCB Powershift4-speed mechanical drive
- Driveline Efficiency
- 90%No hydrostatic parasitic loss
- PTG Ratio
- 8.9 HP / 1,000 lbsPower-to-ground
- Fuel Tank
- 90 gal
- DEF Tank
- 15 galDiesel exhaust fluid
Product & Spray System
- Tank Capacity
- 800 gallonsHDPE · High-density polyethylene
- Rinse Tank
- 100 gal
- Booms
- 90′ · 100′ · 120′ · 132′Pommier aluminum
Cab & Coverage
- Cab
- Heated / Cooled LeatherNoise-dampened, Bluetooth audio, positive-position joystick
- Warranty
- 2-Year Bumper-to-Bumper5-year limited warranty
- Assembly
- Mooresville, INBuilt by Equipment Technologies since 1997
