NH3 RUNNING GEAR

NH3 Running Gear

WA1300 – ADJUSTABLE TRACK

WN1300 – 72″ TRACK WIDTH

WN1360 – 60″ TRACK WIDTH

FEATURES

  • FIFTH WHEEL TYPE REACH POLE TRAILER
  • AVAILABLE WITH ADJUSTABLE OR NON-ADJUSTABLE AXLE
  • STANDARD TRAILER IS EQUIPPED WITH TWO FRONT BOLSTER SPRINGS & BLOCKS ON REAR BOLSTER
  • 15″ FULL CONTACT FIFTH-WHEEL PLATE
  • 13″ TURNING RADIUS
  • EXTRA HEAVY 2″ SPINDLES
  • 17″ AXLE CLEARANCE
  • 6 – LEAF SPRING – 4000 #
  • HOLDS 1000 GALLON AA TANK
  • FRONT AND REAR AXLES ARE MADE OF 3″ x 5″ STEEL TUBING
  • REAR HITCH & WHEELS – 15 x 10 x 6 BOLT ARE STANDARD

WA1600 – ADJUSTABLE TRACK

N1600 – 80″ TRACK WIDTH

WN1660 – 60″ TRACK WIDTH

FEATURES

  • FIFTH WHEEL TYPE REACH POLE TRAILER
  • FRONT AND REAR AXLES ARE MADE OF 4″ x 6″ STEEL TUBING
  • AVAILABLE WITH ADJUSTABLE OR NON-ADJUSTABLE AXLE
  • STANDARD TRAILER IS EQUIPPED WITH TWO FRONT BOLSTER SPRINGS & BLOCKS ON REAR BOLSTER
  • 15″ FULL CONTACT FIFTH-WHEEL PLATE
  • 13″ TURNING RADIUS
  • 17″ AXLE CLEARANCE
  • EXTRA HEAVY 2-1/2″ SPINDLES
  • 6 – LEAF SPRING – 4000 #
  • HOLDS 1450 GALLON AA TANK
  • REAR HITCH & WHEELS – 15 x 10 x 6 BOLT ARE STANDARD

MODEL WNDT1000 DUAL TANK WAGON

WNDT 1000 Dual Tank Wagon

Designed for Two 1000 AAA Tanks

  • Frame made of 6 x 4 Rectangular Tube
  • Tank mounting bracket made of 6 x 4 Rectangular Tube
  • Cross Axle Tube made of 6 x 4 x 3/8 Rectangular Tube
  • Tandem Walking Axle Rear
  • Expanded Metal Deck
  • Tread Plate Steps
  • 8-Bolt Hubs & Spindles
  • Lower Center of Gravity
  • Overall Length = 300″ including Tongue
  • Overall Width = 114″ with 14 L Tires
  • Track Width Front = 60″
  • Track Width Back = 97″
  • Weight with (2) 11 L x 8 ply and (4) 14 L x 12 ply Tires, Less Tank = 3060 #

Optional Equipment

  • 2-Wheel Brakes
  • 4-Wheel Brakes
  • Safety Chains
  • Lites
  • Helper Lift on Tongue
  • Extendable Tongue
  • 120″ Track
  • 12.5 L x 15 x 10 Ply Tires
  • 16.5 L x 16.1 x 10 Ply Tires

WNDT1500 DUAL TANK WAGON

WNDT 1000 Dual Tank Wagon

Designed for two 1450 AA tanks or one 2000 gallon liquid tank

  • Frame made of 6 x 4 Rectangular Tube
  • Tank mounting bracket made of 6 x 4 Rectangular Tube
  • Cross Axle Tube made of 6 x 4 x 3/8 Rectangular Tube
  • Tandem Walking Axle Rear
  • Expanded Metal Deck
  • Tread Plate Steps
  • 8-Bolt Hubs & Spindles
  • Lower Center of Gravity
  • Overall Length = 300″ including Tongue
  • Overall Width = 114″ with 14 L Tires
  • Track Width Front = 60″
  • Track Width Back = 97″
  • Weight with (2) 11 L x 8 ply and (4) 14 L x 12 ply Tires, Less Tank = 3060 #

Optional Equipment

  • 2-Wheel Brakes
  • 4-Wheel Brakes
  • Safety Chains
  • Lites
  • Helper Lift on Tongue
  • Extendable Tongue
  • 120″ Track
  • 12.5 L x 15 x 10 Ply Tires
  • 16.5 L x 16.1 x 10 Ply Tires

WNDT 1000 & 1500 Standard Equipment

WNDT 1000
  • Fifth-Wheel 20 x 20 – 1/2″ Plate with (4) Grease Zerks
  • 2-1/2″ CR Rocking Bolster Pin Greasable
  • 2-1/2″ CR Greasable King Pin
  • DOM Tubing in all Pivots
WNDT 1000
  • 6 x 4 Tandem Axle Tube with 1-3/4″ Pivot Pin – Oil Lite Bearings
  • 2-1/2″ Spindles
  • 8-Bolt Hubs and Wheels – 5000# Capacity Each
  • Reinforced Tank Mounting Pads
WNDT 1000
  • Heavy-duty Bolster Brace
  • Front Bolster Plate – 20″ x 20″ x 5/8″
  • Mounted on 5 x 7 Front Axle Tube with 2-1/2″ Spindles
  • 8-Bolt Hubs and Wheels – 5000# Capacity Each
WNDT 1000
  • Heavy-duty Bolster Brace attached to Frame with Category 3 Swivel and Pin
WNDT 1000
  • Short Gooseneck keeps Overall Length to minimum
  • Maximum turning Radius
  • Expanded Metal Deck
  • Tread Plate Steps
  • Posts to keep Hoses Centered

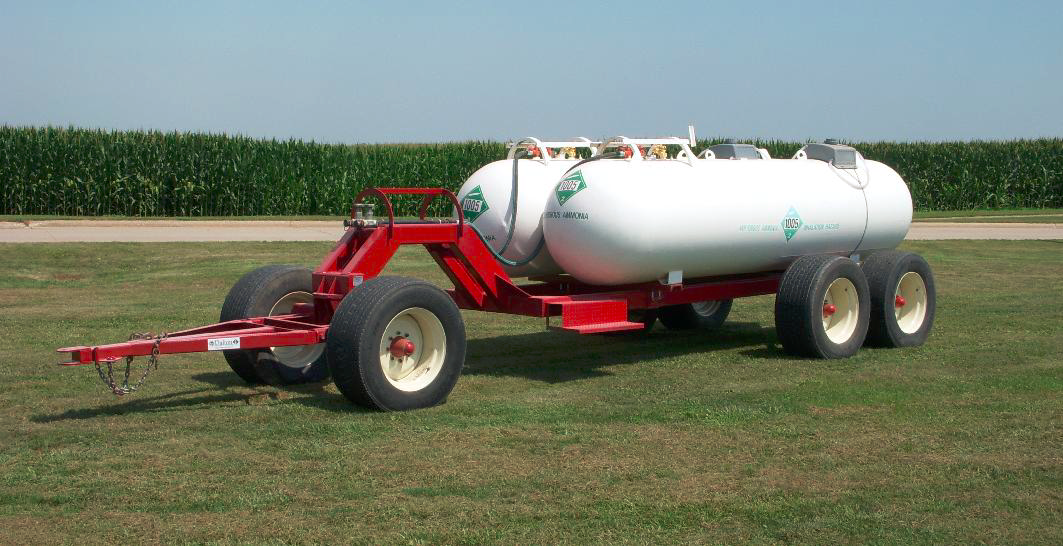

WNDT-GN Series Tank Wagons

WNDT-GN 1000-Dual 1000 Gal Tanks

WNDT-GN 1500-Dual 1450 Gal Tanks

WNDT-GN 2000-Single 2000 Gal Tank

WNDT-GN 3000-Single 3000 Gal Tank

FEATURES

  • Frame made of 6″ x 4″ Rectangular Tube
  • Tank mounting bracket made of reinforced heavy channel
  • Axle Tube made of 6″ x 4″ x 3/8″ Rectangular Tube
  • Tread Plate Steps
  • Super SIngle Tires Front & Rear Standard
  • 8-Bolt Hubs & Spindles
  • Overall Length = 25′ including Tongue
  • Overall Width = 10′ with 16.5 L Tires
  • Track Width Front = 60″
  • Track Width Rear = 102″
  • Tandem Walking Axle Rear
  • 2-1/2″ Greasable Pins
  • Heavy Duty Greasable 5th Wheel
  • Heavy Duty Front Bolster
  • 2-1/2″ Spindles for 8 Bolt Hubs-5000LB capacity each (Front & Rear)
  • Expanded Metal Deck
  • Reinforced Tank Mounts
  • Revised Gooseneck keeps Overall Length to a minimum, allowing optimal turning radius while allowing ample tire clearance

Optional Equipment

  • 2-Wheel Brakes
  • 4-Wheel Brakes
  • Single Rear Axle
  • Lights
  • Extendable Tongue
