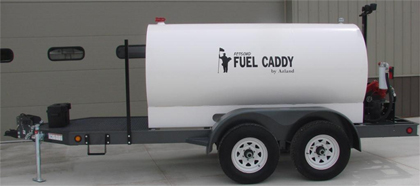

Fuel Caddy

Standard Equipment

  • D.O.T. Compliant Round Tank w/ Internal Baffle
  • H.D. Trailer Frame w/ Integrated Platform
  • Dual Axle Electric Brakes

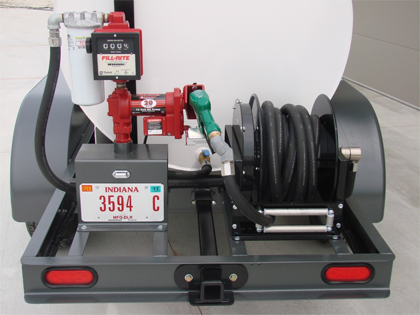

  • 20 GPM 12V Pump w/ Filter
  • 1″ x 12′ Hose, LED Lights
  • Safety Chains & Break Away Kit
  • 7 Pin Round Connector w/ Flat Spades
  • Lockable Nozzle, OUtlet Valve & Fill Cap
  • Quick Release Jack
  • 2-5/16″ Adjustable Coupler
  • 2″ Fill Cap, Vent Cap
  • Power Coated Frame & Tank

Optional Equipment:

  • Fuel Meter
  • Front Mount Toolbox
  • Light Bar w/ Illuminated Switch
  • 1″ x 35′ Hose
  • Hand Crank Hose Reel
  • Spring Retractable Hose Reel
  • Auto Shut Off Handle
  • Swivel Hose Coupler
  • 12V Battery & Charging Kit
  • 2″ Rear Receiver
  • D-Ring Tie Down Hooks
  • Side Steps & Handles

Model
FC500 FC500HD FC750HD FC1000HD
Tank Size 500 Gallon 500 Gallon 750 Gallon 1,000 Gallon
Internal Baffles Single Single Dual Dual
C-Channel Frame Size 5″ 6″ 6″ 6″
Tandem Axle Max Weight 3,500 lbs 3,500 lbs 5,200 lbs 5,200 lbs
Tires ST205/75R 15 ST225/75R 15 ST225/75R 15 ST225/75R 15
Load Range C Load Range D Load Range D Load Range D
White Spoke Wheels 5 Lug 15″ 6 Lug 15″ 6 Lug 15″ 6Lug 15″

*Available Colors: Black, Red, Green, & Construction Yellow
