Ace Roto-Mold Tanks

Den Hartog Industries

Den Hartog Industries offers services from conception and design through production, customer service, quality assurance, and delivery for the agricultural, industrial, OEM, and marine industries.

Known for its spirit of innovation, focus on the customer, and product quality that exceeds industry standards and expectations, Den Hartog Industries can provide products for all your plastic and metal manufacturing needs.

Please Note: OVA has special specs and stocking items may have a different lid, fitting, or location of either item than normally listed.

Please refer to our catalog or contact your local OVA for details.

Click a part number to open its drawing (PDF) on the Den Hartog Industries website.

Cone Bottom

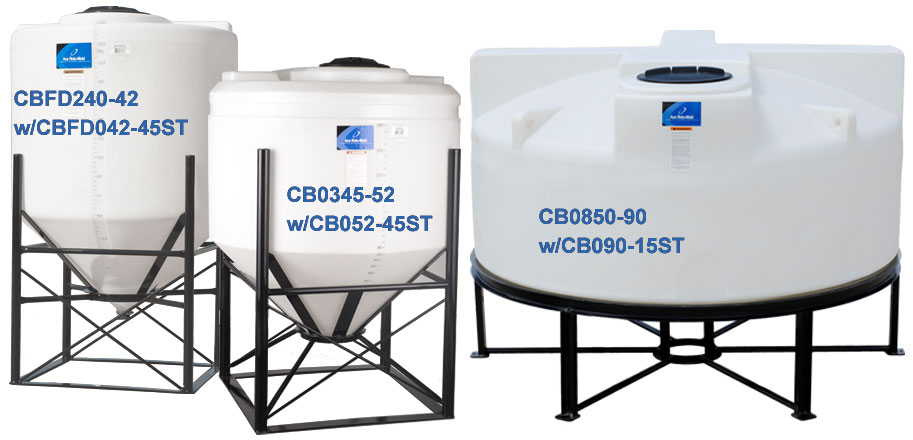

• Cone Bottom Tanks-Dome Top
• Cone Bottom Tanks-Flat Top

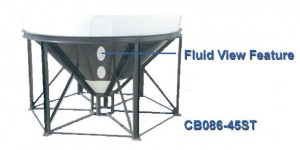

• Cone Bottom Stands

Cone Bottom Tanks are selected when a more complete drain out of stored chemical is required in indoor or outdoor installations. Tanks require stands to support the conical bottoms. Tanks are manufactured from medium- or high-density polyethylene with U.V. inhibitors. Tank walls are translucent for level viewing and equipped with gallon indicators.

Cone Bottom Tanks are selected when a more complete drain out of stored chemical is required in indoor or outdoor installations. Flat Top Cone Bottom Tanks feature additional flats for fitting installation or mount. Tanks require stands to support the conical bottoms. Tanks are manufactured from medium- or high-density polyethylene with U.V. inhibitors. Tank walls are translucent for level viewing and equipped with gallon indicators.

Elliptical (Oval Tank with Cradle)

Elliptical

Elliptical Tanks can be selected for stationary or transportable (non DOT regulated) applications both indoors and outdoors. The elliptical tank lowers the center of gravity to enhance stability and visibility. The tanks feature a standard 2-1/2” collection sump on the bottom for full drain out. An 8-1/2” deep sump option is available on five sizes. Sump is located directly under the lid on standard tanks, but a center sump option is available on tanks from 500-1250 gallons. These tanks require the bottom to be fully supported with a cradle for use. The tanks are manufactured from medium-density polyethylene with U.V. stabilizers and are designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.

• Elliptical Tanks
• Elliptical Cradles

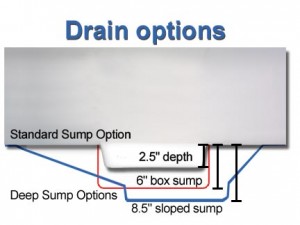

Elliptical Tanks are available with the following sump options:

– 2.5″ sump (standard) – 6″ deep boxed sump (HED1600-78 only) – 8.5″ sloped deep sump Deep sump part numbers begin with “HED”.

* indicates baffle option available † indicates baffle system is standard + indicates available in a flat-bottom style

Bands are powder-coated black.

Free Standing Horizontal (Trailer Tanks)

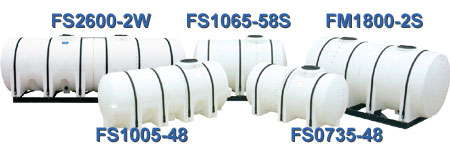

Free Standing Horizontal

• Without Sump
• With Sump
• Hoops and Skids
• Powder-Coated Steel Bands with J-Bolts

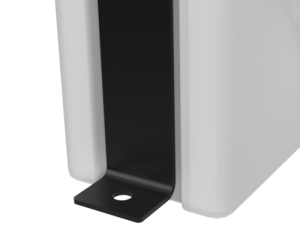

• Powder-Coated Formed Steel Bands with Feet

Free Standing Leg Tanks are selected when transportable (non DOT regulated) containment is required for indoor or outdoor applications. Leg Tanks are equipped with molded-in legs to support the tank and band locators for tie down. Tanks are manufactured from medium- or high-density polyethylene with U.V. inhibitors and designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.

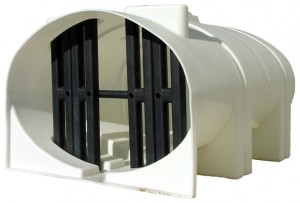

Ace Roto-Mold’s unique baffle system is easy to install and clean. These baffles help to reduce fluid sloshing. Baffles come standard in some tanks and offered as an option in others:Optional: FS1065-56W,FS1300-DW Standard: FS1610-78, FS1750-62, FS1850-78, FS2350-88, FS2750-88, FS3250-88, FS3750-88 & FS4250-88

View technical drawings by clicking on the part number below. FSxxxx-W = Without Sump † indicates can be shipped via UPS/Fed Ex When ordering, please indicate whether the fitting should be installed, not installed, or shipped loose. If installed, indicate preferred fitting location (END or SIDE are most common). Leg Tanks must be fully supported for transport.

Free Standing Leg Tanks are selected when transportable (non DOT regulated) containment is required for indoor or outdoor applications. Leg Tanks are equipped with molded-in legs to support the tank and band locators for tie down. Tanks are manufactured from medium- or high-density polyethylene with U.V. inhibitors and designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators. Skid required to support elevated legs.

Ace Roto-Mold’s unique baffle system is easy to install and clean. These baffles help to reduce fluid sloshing. Baffles come standard in some tanks and offered as an option in others: Optional: FM1065-56S,FM1300-DS Standard: FM1310-62,FM1610-78S, FM1750-62S, FM1850-78, FM2350-88S, FM2750-88S, FM3250-88S, FM3750-88S & FM4250-88S

View technical drawings by clicking on the part number below. FMxxxx-S = Sump † indicates can be shipped via UPS/Fed Ex When ordering, please indicate whether the fitting should be installed, not installed, or shipped loose. If installed, indicate preferred fitting location (END or SIDE are most common). Leg Tanks must be fully supported for transport.

*FS0035-SB and FS0065-SB bands are stainless steel. Stainless is available on other sizes – call for quote

† indicates can be shipped via UPS/Fed Ex

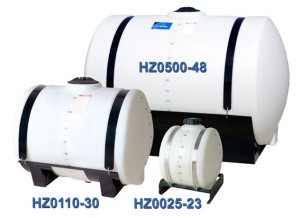

Horizontal (Round Tank with Cradle)

Horizontal

• Horizontal Tanks

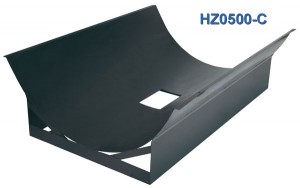

• Horizontal Cradles

Round Horizontal Tanks are selected when transportable (non DOT regulated) containment is required for indoor or outdoor applications. Tanks require skids and bands to support the round bottom. All tanks are equipped with drain out sumps. Tanks are manufactured from medium-density polyethylene with U.V. inhibitors and designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.

View technical drawings by clicking on the part number below. † indicates can be shipped via UPS/Fed Ex

View technical drawings by clicking on the part number below. † indicates can be shipped via UPS/Fed Ex * Stainless Steel Bands

Inductor

• Inductor Tanks

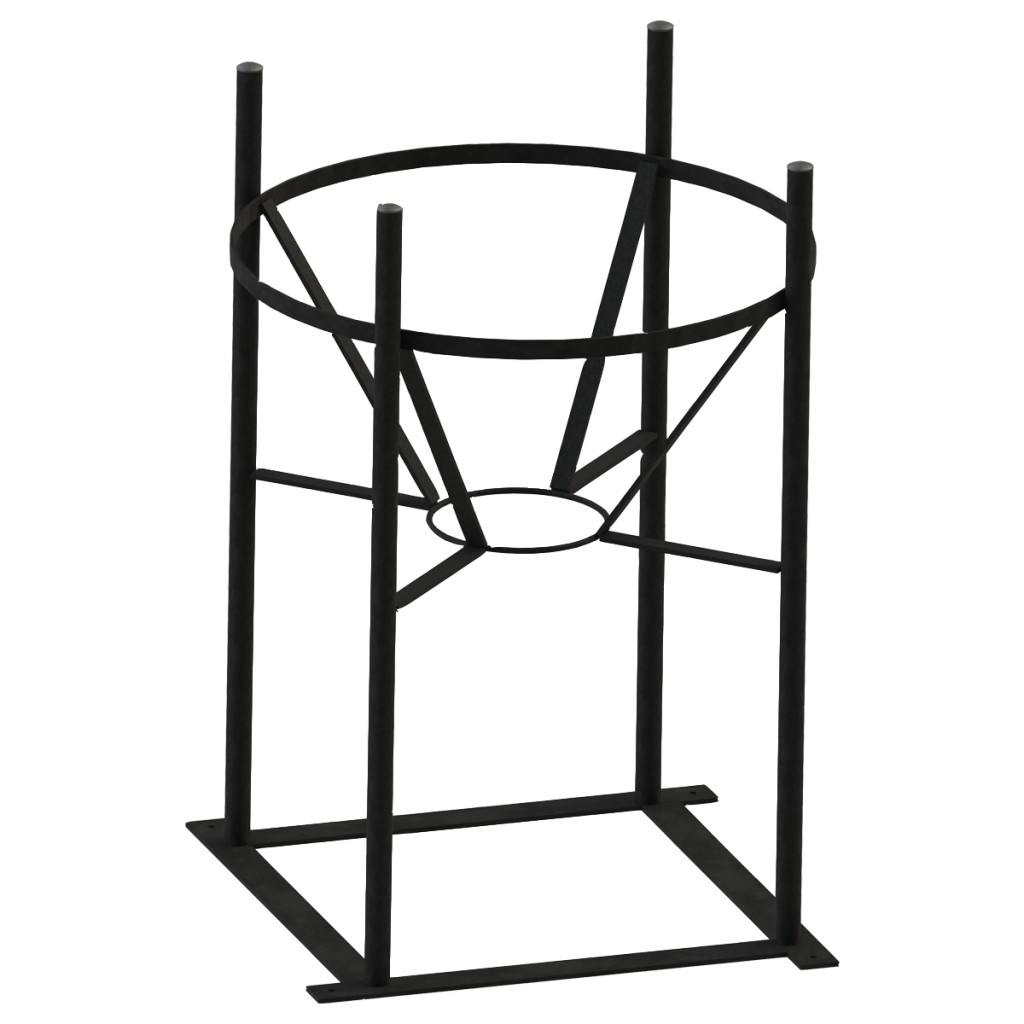

• Inductor Stands

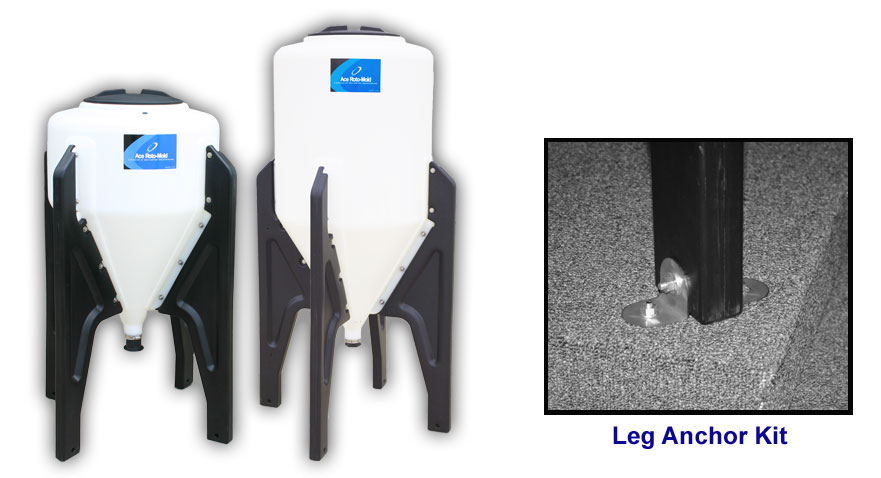

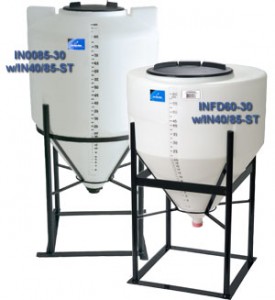

• Blow Mold Inductor Tanks with Poly Stand Set

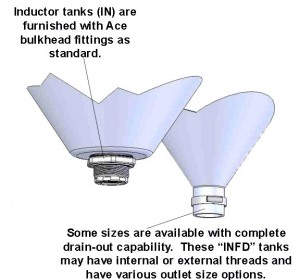

Inductor Tanks are selected as supply tanks for application systems and when a more complete drain out of stored liquids is required in indoor or outdoor applications. Tanks require stands to support the conical bottoms. Tanks are manufactured from medium-density polyethylene with U.V. inhibitors and designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.

Looking for a stand for an Inductor, click here to check out the large assortment of sizes DHI has available.

Clicking on the Part # below will bring up the Print (Technical Drawing) of the item.

† Indicates can be shipped via UPS/Fed Ex

Pallet Paks

Pallet Pak units are designed for light-duty transport (non DOT regulated) for indoor or outdoor applications. The base of the pallet frame is designed for forklift transportability. The rectangular pallet paks have a metal frame and plastic base. The vertical paks have poly bases. The tanks are manufactured from medium-density polyethylene with U.V. inhibitors and designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.

Pick Up Tanks (Truck Bed)

Pick Up Tanks

Pick Up Tanks are selected as applicator tanks or when transportable (non DOT regulated) containment is required. Tanks are designed to fit most pickup trucks. Tanks are manufactured from medium-density polyethylene with U.V. inhibitors and designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.

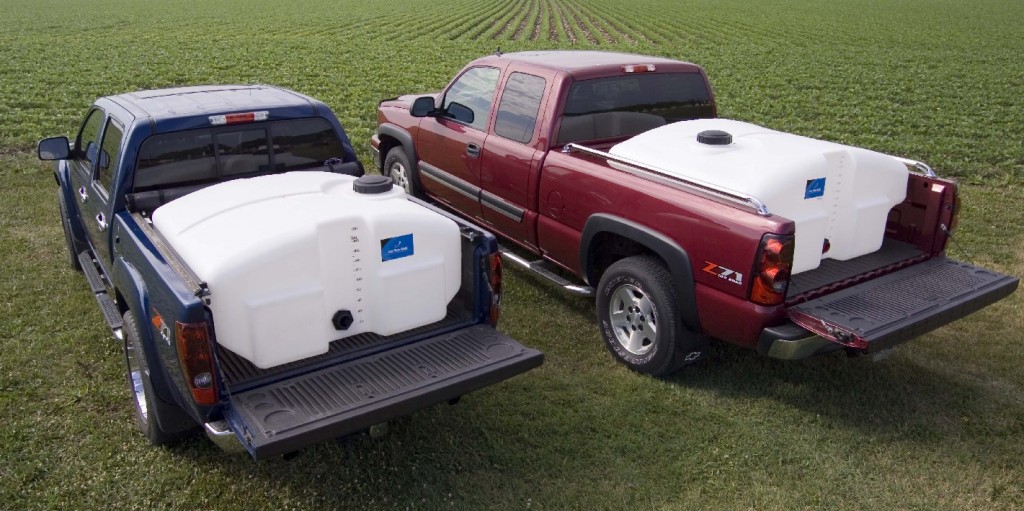

The distinct shape of the new 205 & 305 gallon low-profile tanks allow for full use of truck bed space and are designed for improved rear vision.

205 gallon tanks fit in the following trucks: Nissan Frontier, GMC Canyon, Toyota Tacoma, Ford Ranger, Dodge Dakota, Chevrolet Colorado

305 gallon tanks fit in the following trucks: Ford F-150, 250 & 350 Dodge Ram 1500, 2500 & 3500 Chevrolet Silverado 1500, 2500 & 3500 Toyota Tundra GMC Sierra 1500, 2500 & 3500 Lincoln Mark LT

Syphon tube included with all Pick Up Tanks

View technical drawings by clicking on the part number below. *305 Gal Pickup tank standard 1.5 specific gravity, 1.7 specific gravity available upon request

Specialty Bulk Storage & Applicator

Specialty Tanks are available for a variety of custom applications in both stationary and portable configurations. Tanks are manufactured from linear low density polyethylene with U.V. stabilizers and designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators. Blow Molded tanks (SPBM) are manufactured from HPDE.

• Specialty Rinse Tanks

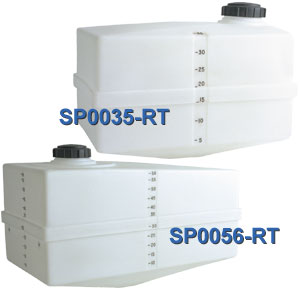

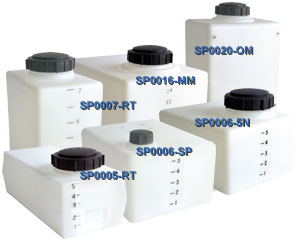

• Rectangle Tanks

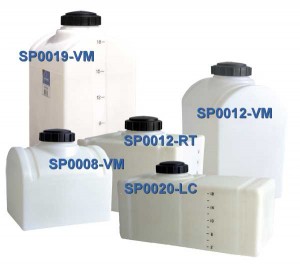

• Applicator Tanks
• Utility Tanks-Flat Bottom

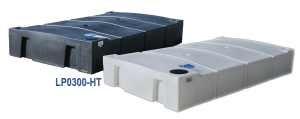

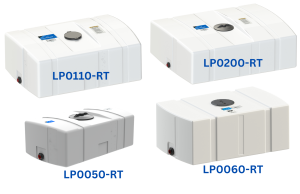

• Low Profile Tanks
• Powder-Coated Steel Bands for Low Profile & Utility Tanks

Flat Bottom

Total Drain

View technical drawings by clicking on the part number below. * Sloped bottom for full drainage † indicates can be shipped via UPS/Fed Ex

Specialty Tanks are available for a variety of custom applications in both stationary and portable configurations. Tanks are manufactured from medium-density polyethylene with U.V. inhibitors and designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.

Tanks listed below have sump on bottom that hang below tank. †Indicates can be shipped UPS/Fed Ex

*Metal Bands Available; Sold Separately

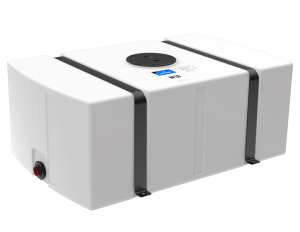

LP0060-RT with LP0060-SBP

Spot Sprayers

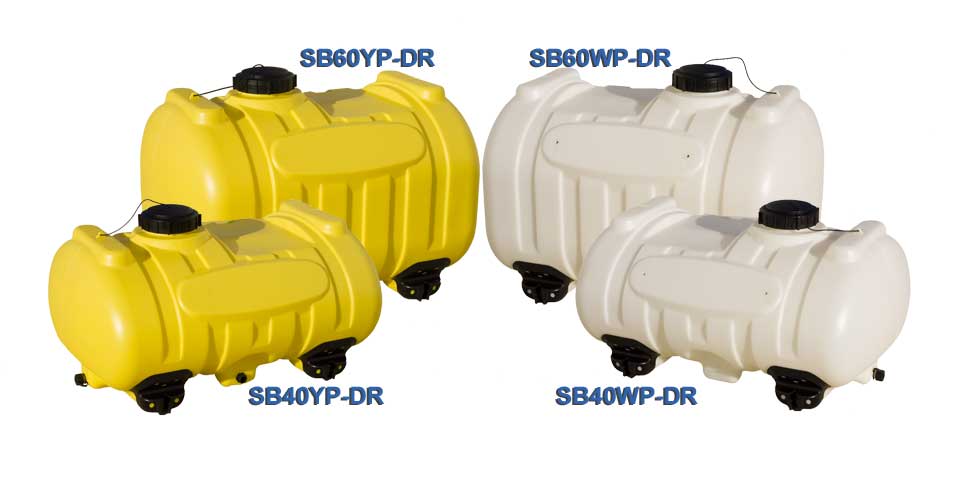

Spot Sprayer Tanks are designed as portable applicator supply tanks and are equipped with pump and equipment mount inserts. Tanks are equipped with molded-in legs to support the tank and band locators for tie down. Tanks mount with bottom inserts. All tanks are available with drain out sumps. Tanks are manufactured from linear low-density polyethylene with U.V. inhibitors and designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.

Tractor Mounted

Tear Drop Tanks

Tear Drop Cradles

Vertical (Flat Bottom Storage)

Vertical Dome Top

Vertical – Dome Top tanks are free standing with a flat bottom for indoor or outdoor installations. Ace Roto-Mold Vertical Tanks conform to the requirements of NSF/ANSI/CAN61. Tanks are manufactured from medium- or high-density polyethylene with U.V. inhibitors. Tank walls are translucent for level viewing and equipped with gallon indicators.

* Heavy Fitting

Accessories

• Accessory Clips
• J-Bolts
• Lids

These flexible nylon clips are handy when attaching wands, hoses or other round objects to a flat surface. The mounting surface features an anti-rotation button, which engages with the dimple recess in the tank to prevent rotation. Clips attach to surface with #10 screws. Mounts shafts from 1/4″ to 7/16″ diameter.

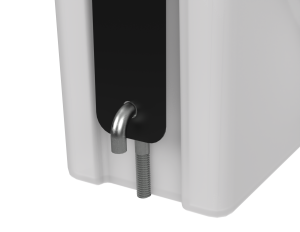

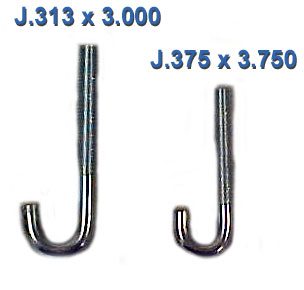

J-Bolts are used to secure bands and hoops to metal framework. J-Bolts are included with the bands and hoops that require them, but we also offer bolt bags and individual J-Bolts as replacement parts. Please refer to the dimensions listed below to order the correct part number. If you need assistance determining which replacement part your tank requires, call our customer service department at 1-800-342-3408. All accessory parts can be shipped via UPS/FedEx.

Lids for Ace Roto-Mold tanks are available in the following sizes. Standard lids that come included with each tank are listed in each tank table. The following lids are available as replacement parts. If you need assistance determining which replacement part your tank requires, call our customer service department at 1-800-342-3408. All accessory parts can be shipped via UPS/FedEx.
