APACHE Sprayers


Expand for Unique Features

Tank Capacity
750 gallons (approximate)
Transmission
ITL/JCB transmission Power Shift, 4-speed
Cummins Engine
Tier 3 160 hp
Top Road Speed
28 MPH
Weight
19,200 lbs . (approx. dry weight)
Crop Clearance
42″ w/ ITL/JCB mechanical drive; 50″ clearance with 18″ drop-box all gear final drives (optional)


Expand for Unique Features

Tank Capacity
1,000 gallons (approximate)
Transmission
ZF Power Shift, 6-speed w/lock-up torque converter
Cummins Engine
Tier 3 173 hp (AS1020)
Tier 4i 173 hp (AS1025)
Top Road Speed
35 MPH
Weight
19,500 lbs . (approx. dry weight)
Crop Clearance
42″ w/ ITL/JCB mechanical drive; 50″ clearance with 18″ drop-box all gear final drives (optional)


Expand for Unique Features

Tank Capacity
1,200 gallons (approximate)
Transmission
ZF Power Shift, 6-speed w/lock-up torque converter
Cummins Engine
Tier 3 215 hp
Top Road Speed
35 MPH
Weight
20,300 lbs . (approx. dry weight)
Crop Clearance
50″ w/Fairfield, 18″ drop-box all gear final drives


Expand for Unique Features

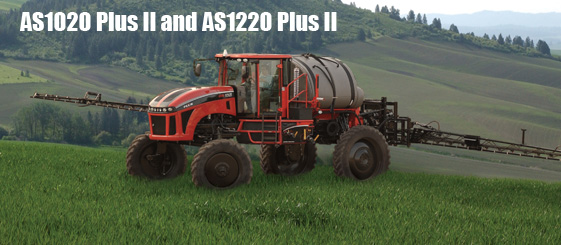

Unique Features of the AS1020 Plus II

Tank Capacity
1,000 gallons
Transmission
ZF Power Shift, 6-speed w/lock-up torque converter
Cummins Engine
Tier 3 275 hp
Top Road Speed
35 MPH
Weight
19,500 lbs. (approx. dry weight)
Crop Clearance
50″ clearance with 18″ drop-box all gear final drives (Required with plus II package)

Unique Features of the AS1220 Plus II

Tank Capacity
1,200 gallons
Transmission
ZF Power Shift, 6-speed w/lock-up torque converter
Cummins Engine
Tier 3 275 hp
Top Road Speed
35 MPH
Weight
20,300 lbs. (approx. dry weight)
Crop Clearance
50″ clearance with 18″ drop-box all gear final drives

Standard Features
FUEL CAPACITY (Diesel) 100 gallons
AXLE WIDTH 120″ fixed width axle
120″ – 160″ adjustable axle width w/ optional hydraul. adjust
SUSPENSION Patented Independent Hydraulic
BRAKES Fully enclosed, self adjusting, internal wet disc brakes
FRONT TIRES Titan 380/80R38 (narrow and semi-float options available)
REAR TIRES Titan 380/90R46 (narrow, semi-float and full-float options available)
TRANSPORT WIDTH & HEIGHT 144″ maximum each
OVERALL LENGTH 290″ maximum
ET CUSTOM BOOMS straight 80′, 90′ or 100′
combo 60′/80′ or 60′/90′
PRODUCT PUMP Hypro, hydraulically driven centrifugal product pump
RINSE TANK 100 gallons
ET CUSTOM PRESSURIZED 4-point fulcrum mounted cab with wrap-around glass, improved in- and out-of cab lightin and rear-hinged door
PRECISION APPLICATION EQUIPMENT AVAILABLE FACTORY INSTALLED ON ALL NEW APACHES:
Application Rate Control: SCS5000™;Field Computers: Envizio Pro™ or Viper Pro™ Boom Leveling: AutoBoom™; Boom Shutoff Control: AccuBoom™; Guidance & Steering: SmarTrax™; RTK Correction: Slingshot™.
